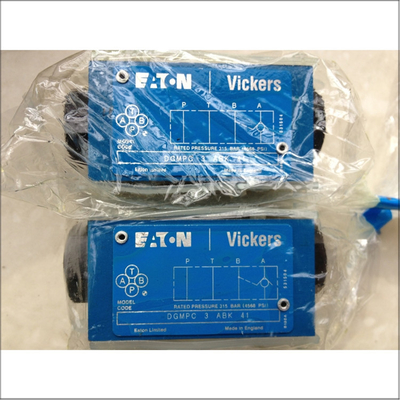

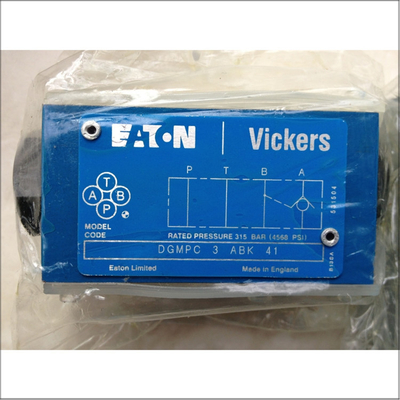

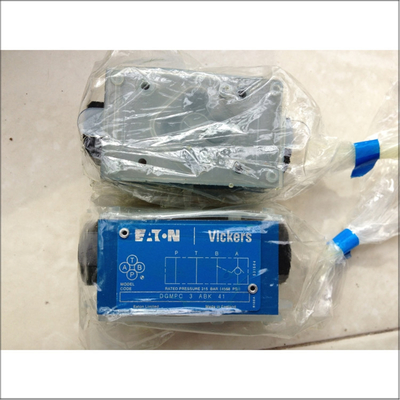

Vickers DGMPC-3-ABK-41 Proportional Valve for Industrial Hydraulic Systems Pilot-Operated Check Valve and Reliability Now

Technical Specifications

• Model: DGMPC-3-ABK-41
• Series: 41 Series
• Type: Pilot-operated check valve
• Flow Rate: Up to 60 liters per minute (LPM) or 16 US gallons per minute (GPM)
• Maximum Operating Pressure: 315 bar (4500 psi)
• Working Temperature Range: -20°C to +70°C (-4°F to +158°F)
• Interface: ISO4401-03 (CETOP 3)
• Body Material: Cast Iron
• Check Valve Type: Pilot-operated check valve
• Check Location: Check in Port A, Pilot in Port B
• Weight: Approximately 0.8 kg (1.81 lbs)

Features

• Pilot Operated: Allows free flow in one direction in the line in which the check valve element is located .
• Dual Function: Provides check valve functionality in both ports A and B .
• High Flow Capacity: Handles high flow rates up to 60 LPM.
• Wide Pressure Range: Suitable for pressures up to 315 bar.
• Temperature Resistance: Operates reliably within a wide temperature range.
• Compact Design: Suitable for integration into various hydraulic systems.
• Reliable Performance: Ensures consistent fluid flow control in demanding applications.

Applications

• Material Handling Equipment
• Automated Manufacturing Processes
• Die Casting & Foundry
• Machine Tool
• Marine/Offshore Systems
• Presses
• Primary Metal Processing
• Plastics, Pulp & Paper
• Test Equipment
