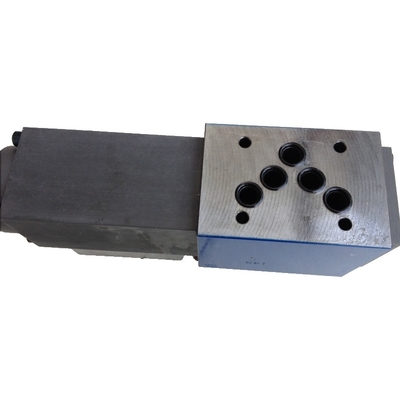

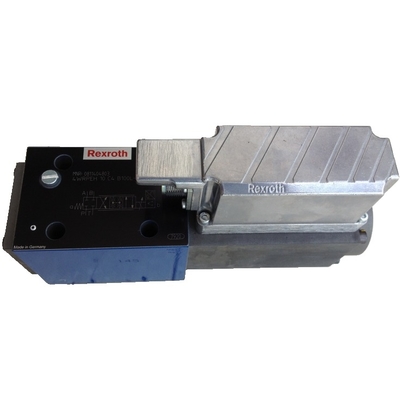

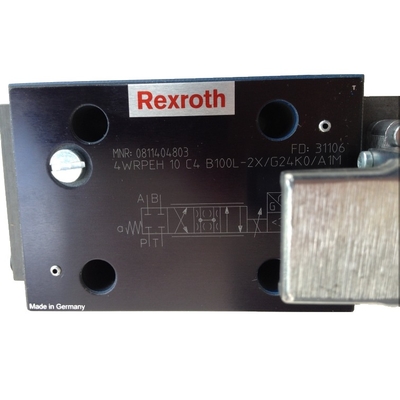

Rexroth Proportional Valve 4WRPEH10C4B100L-2X/G24K0/A1M Low Maintenance Costs Low-Power Design Durable Design

Description:

The Rexroth Proportional Valve 4WRPEH10C4B100L-2X/G24K0/A1M is a high-performance direct-acting proportional directional valve manufactured by Bosch Rexroth in Germany. It is widely used in applications requiring precise control of hydraulic system direction and flow. This proportional valve incorporates advanced electro-hydraulic proportional control technology, enabling seamless adjustment of hydraulic system pressure, flow, and direction. The valve is a direct-acting proportional directional valve. The spool type is C4, suitable for specific flow rates and control characteristics. The valve has a rated flow rate of 100 L/min. This valve belongs to the 20 to 29 series, with unchanged installation and connection dimensions. The valve uses a 24V DC power supply without a plug. This indicates that the valve has an analog interface. The valve receives voltage signals through the proportional solenoid, generating corresponding actions to cause the spool of the working valve to move, thereby changing the valve orifice size and achieving pressure and flow output proportional to the input voltage. The displacement of the spool can be feedback in mechanical, hydraulic, or electrical form to ensure control accuracy. This valve features rapid dynamic response characteristics, making it suitable for applications requiring frequent start/stop operations or rapid directional switching. Through precise control of the proportional solenoid, it enables continuous, stepless regulation of hydraulic system flow and direction. Some models incorporate integrated electronic components (OBE), offering advanced control functions such as current negative feedback constant current control and adjustable ramp time.


Application Areas:

Rexroth Proportional Valve 4WRPEH10C4B100L-2X/G24K0/A1M, due to its high performance and reliability, is widely used in multiple fields:
Industrial Automation: In automated production lines, this proportional valve can be used to control the displacement, speed, and force of hydraulic cylinders, enabling programmable control of complex movements. For example, in injection molding machines, hydraulic presses, and other equipment, it ensures smooth motion and rapid response.
Construction machinery: In excavators, cranes, concrete pump trucks, and other construction equipment, this valve is used to control the motion of hydraulic motors and cylinders, enabling precise operations. For example, in crane boom extension control, the proportional valve can precisely control the extension speed of the cylinder based on input signals from the control lever, enhancing operational safety and efficiency.
Metallurgy and heavy machinery: In heavy equipment such as steel mills, rolling mills, and presses, this proportional valve can be used to control high-pressure hydraulic systems, enabling precise control of heavy-duty equipment. Its high pressure resistance and stability make it suitable for extreme operating conditions.
Testing and Simulation Equipment: In systems with high dynamic response requirements, such as hydraulic test stands, flight simulators, and automotive testing equipment, this valve provides high-frequency, high-precision hydraulic control to meet complex testing needs.


Advantages:

Proportional Control Technology: Through precise control of the proportional solenoid, it enables continuous, stepless regulation of hydraulic system flow and direction.
Integrated Electronic Components: Some models feature integrated electronic components (OBE), offering advanced control functions such as current negative feedback constant current control and adjustable ramp time.
Rapid Dynamic Response: The valve exhibits rapid dynamic response characteristics, making it suitable for applications requiring frequent start/stop operations or rapid directional switching.
PWM Modulation: Utilizes PWM modulation technology to ensure stable control signals and rapid response.
Precise Flow Control: By precisely controlling fluid flow, unnecessary energy loss is avoided, enabling energy-efficient operation.
Low-Power Design: Features a low-power design to reduce heat generation and enhance system efficiency.
Durable design: Constructed with high-quality materials and advanced manufacturing processes, it offers excellent wear resistance and contamination resistance.
Long service life: Designed for a long service life with easy maintenance, it reduces downtime and maintenance costs.
Multiple installation options: Offers various installation methods for seamless integration into existing hydraulic systems.
Low maintenance costs: Features a simple design for easy maintenance, reducing downtime and maintenance expenses.
