Thông tin chi tiết sản phẩm:
|
| Brand: | Rexroth | Model: | DBETE-6X/315YG24K31A1V |
|---|---|---|---|
| Size_CETOP: | D03 | Connection diagram: | ISO 4401-03-02-0-05 |
| Supply voltage: | 24 VDC | Number of switching positions: | 2 |
| Weight: | 1.58 | Seals: | FKM |
Product Description

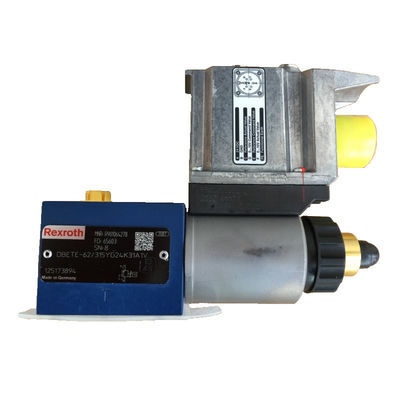

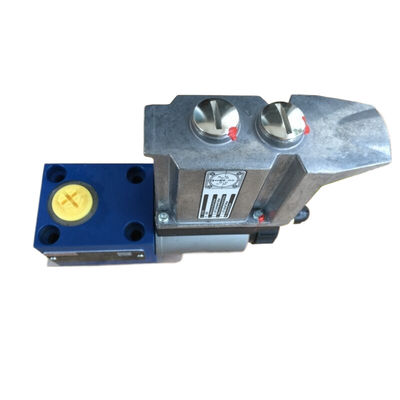

The Bosch Rexroth DBETE-6X/315YG24K31A1V (R901064278) is a state-of-the-art industrial hydraulic valve designed for precise pressure limitation in high-performance applications. This direct-acting, proportional pressure relief valve features seat design and integrated electronics (OBE), making it ideal for remote control operations. It operates via a proportional solenoid with a central thread and detachable coil, allowing for stepless adjustment of system pressure based on the electric command value. The valve is characterized by its robust construction, including a housing, proportional solenoid, valve seat, valve poppet, and integrated electronics. The command value pressure characteristic curve is finely tuned at the factory to ensure minimal manufacturing tolerance. It employs a straightforward principle where the control electronics receive a command value that dictates the current to the solenoid coil.
This current translates into mechanical force on the armature plunger, influencing the position of the valve poppet against the valve seat to regulate fluid flow between ports P and T or Y. Designed for subplate mounting with porting patterns conforming to ISO standards, this model has a size 6 component series X with a maximum operating pressure of 315 bar and can handle maximum flow rates up to l/min. The DBETE-6X/315YG24K31A1V is equipped with an electrical connection featuring Connector pole + PE according to EN standards and supports various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. With CE conformity for electromagnetic compatibility within the EU and analog connectivity for command values ranging from 0-10 VDC, this Bosch Rexroth valve ensures reliable performance in complex hydraulic systems.
| Brand | Rexroth |
| Model | DBETE-6X/315YG24K31A1V |
| Spool symbol | P → T, P → Y |
| Max. pressure | 420 |
| Productgroup ID | 9,10,11,12,13,14 |
| Number of ports | 3 |
| Type of actuation | Electrical with integrated electronics |
| Size | 6 |
| Electrical connector | Connector 7-pole (6 + PE) |
| Max. flow | 2 |
