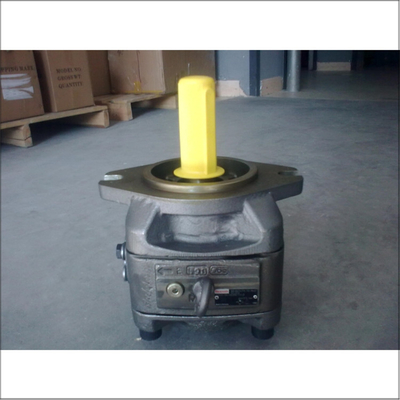

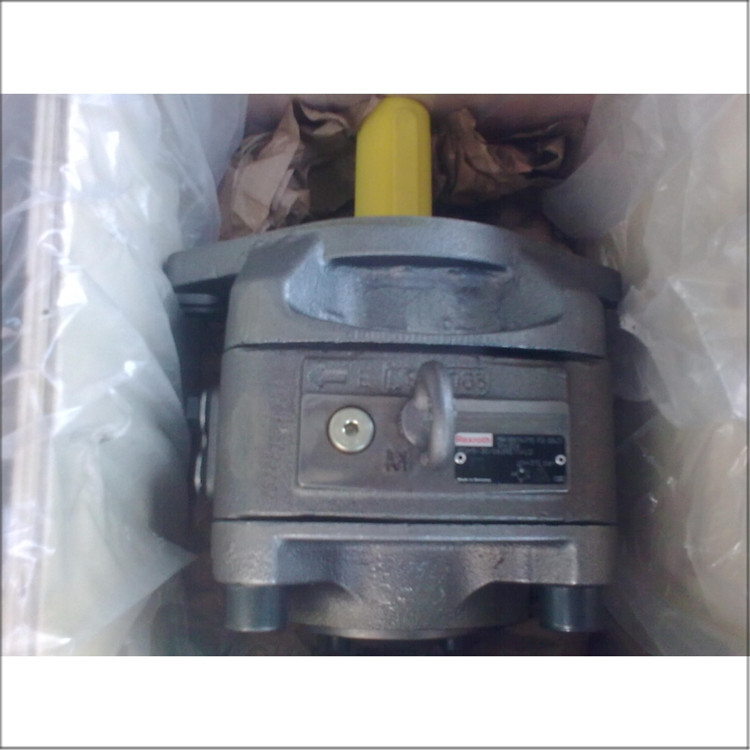

Highly Versatile Rexroth PGH5-3X 063RE11VU2 Servo Motor For Various Applications

Technical Specifications

• Brand: Bosch Rexroth
• Model: PGH5-3X 063RE11VU2
• Material Number: R901147115
• Displacement: 63 cm³/rev
• Maximum Operating Pressure: 350 bar
• Maximum Flow Rate: Up to 192 liters/min at 3000 RPM
• Shaft Design: Cylindrical shaft with fitting key, ISO 3019-2
• Mounting Flange: SAE 2-hole
• Seals: FKM (fluorocarbon)
• Weight: Approximately 25 kg
• Dimensions: 210 mm (L) x 105.5 mm (W) x 194 mm (H)
• Operating Noise: Low noise operation, suitable for environments where noise reduction is important

Features

• Fixed Displacement: Ensures consistent flow.
• Low Noise Operation: Suitable for noise-sensitive environments.
• Low Flow Pulsation: Provides smooth operation.
• High Efficiency: Even at low speed and viscosity, due to sealing gap compensation.
• Robust Design: Durable construction with a cast iron housing.
• Versatile Applications: Suitable for a wide range of industrial uses.

Applications

• Plastics Processing Machines: For fatigue-resistant drives with high power and high pressures.
• Automatable Presses: Ensures reliable hydraulic power for pressing operations.
• Casting Machines: Provides consistent hydraulic power for casting processes.
• Accumulator Charging Operations: Ideal for applications requiring high pressure and large numbers of load cycles.
