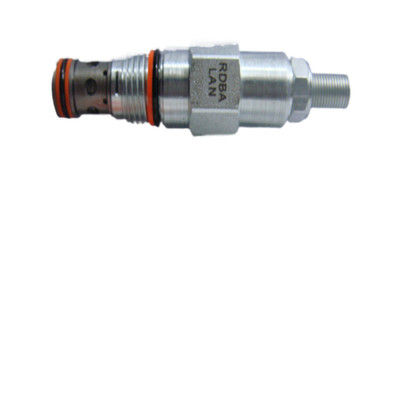

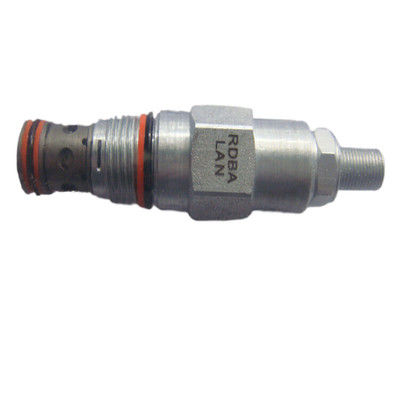

SUN Overflow Valve RDBA-LAN For Dirt Tolerant And Silting Immune Performance

SUN Overflow Valve RDBA-LAN For Dirt Tolerant And Silting Immune Performance
SUN Overflow Valve RDBA-LAN For Dirt Tolerant And Silting Immune Performance SUN Overflow Valve RDBA-LAN For Dirt Tolerant And Silting Immune Performance

Large Image :  SUN Overflow Valve RDBA-LAN For Dirt Tolerant And Silting Immune Performance

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: RDBA-LAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

SUN Overflow Valve RDBA-LAN For Dirt Tolerant And Silting Immune Performance

Description
Brand: SUN Model: RDBA-LAN
Model Weight: 0.22 Lb. Locknut Torque: 80 - 90 Lbf In.
Locknut Hex Size: 1/2 In. Adjustment Screw Internal Hex Size: 5/32 In.
Valve Installation Torque: 20 - 25 Lbf Ft Valve Hex Size: 3/4 In.
Highlight:

Mechanical Hydraulic Valve

,

Hydraulic Relief Valve

,

Hydraulic Control Valves

SUN Overflow Valve RDBA-LAN For Dirt Tolerant And Silting Immune Performance
Product Specifications
Attribute Value
Brand SUN
Model RDBA-LAN
Model Weight 0.22 lb.
Locknut Torque 80 - 90 lbf in.
Locknut Hex Size 1/2 in.
Adjustment Screw Internal Hex Size 5/32 in.
Valve Installation Torque 20 - 25 lbf ft
Valve Hex Size 3/4 in.
Product Description

The SUN RDBA-LAN is a direct-acting relief cartridge valve designed for dirt tolerant and silting immune performance in hydraulic systems. This normally closed, pressure-limiting valve protects components from pressure transients by opening to tank when inlet pressure reaches the valve setting.

Key Features
  • Smooth, quiet operation with essentially zero leakage
  • Highly resistant to dirt and silting
  • Fast response time (typical 2 ms)
  • Accepts maximum pressure at port 2 for cross port relief circuits
  • Floating style construction minimizes internal binding
  • Reseat meets or exceeds 85% of crack pressure at test setting
  • Physically and functionally interchangeable with other 2-port relief cartridges
Technical Specifications
Cavity T-162A
Series 0
Capacity 12 gpm
Maximum Operating Pressure 5000 psi
Factory Pressure Settings Established at 4 gpm
Maximum Valve Leakage at Reseat 10 drops/min.
SUN Overflow Valve RDBA-LAN For Dirt Tolerant And Silting Immune Performance 0
