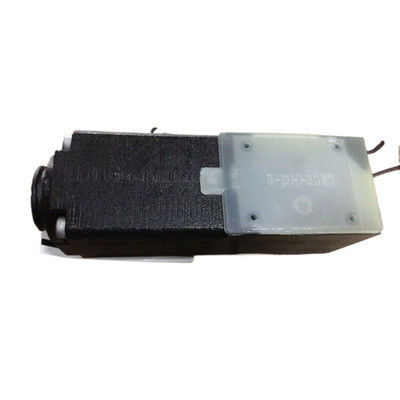

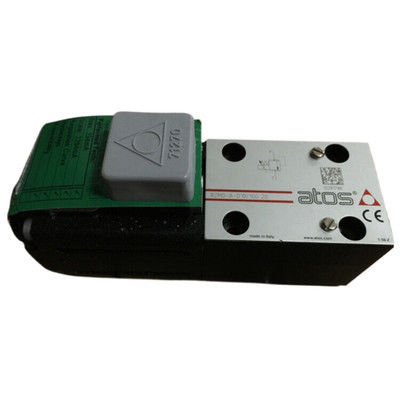

ATOS Proportional Valve RZMO-A-010 100 20 For Easy Settings And Real-Time Diagnostics

Poppet type, direct, digital proportional relief valves for pressure open loop controls. Designed to be coupled with off-board driver.

Key Features:

• AEB basic execution with on-board digital driver, featuring analog reference signal or IO-Link interface for digital reference signals, valve settings, and real-time diagnostics
• AES full execution with on-board digital driver including fieldbus interfaces for digital reference signals, valve settings, and real-time diagnostics
• Bluetooth/USB connection available for both AEB and AES models for valve settings via mobile app and ATOS PC software
• Size: 06-180 4401
• Max flow: 4 l/min
• Max pressure: 350 bar

The driver controls in closed loop the current to the valve proportionally to the external reference input signal. Reference input signal is factory preset according to selected valve code (defaults: 0-10Vdc for standard or 4-20mA for /I option). Input signal can be reconfigured via software selecting between voltage and current, within a maximum range of +10Vdc or +20mA.

Drivers with fieldbus interface (BC, BP, EH) can be software set to receive reference signal directly from the machine control unit (fieldbus reference). Analog reference input signal can be used as on-off commands with input range 0-24Vdc.

• Hysteresis: ≤ 1.5% of max pressure
• Linearity: ≤ 3.0% of max pressure
• Repeatability: ≤ 2.0% of max pressure
• Coil voltage code: standard
• Max. solenoid current: 2.6 A
• Duty factor: Continuous rating (ED=100%)
• Tropicalization: Tropical coating on electronics PCB
• Compatible with mineral oils: NBR, FKM, NBR low temp.
