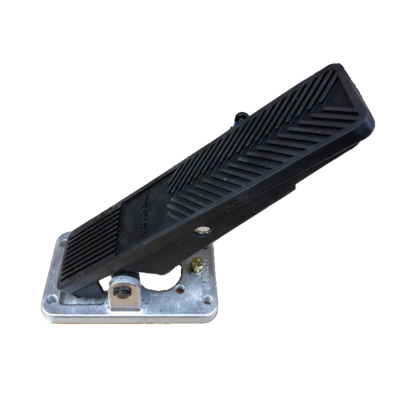

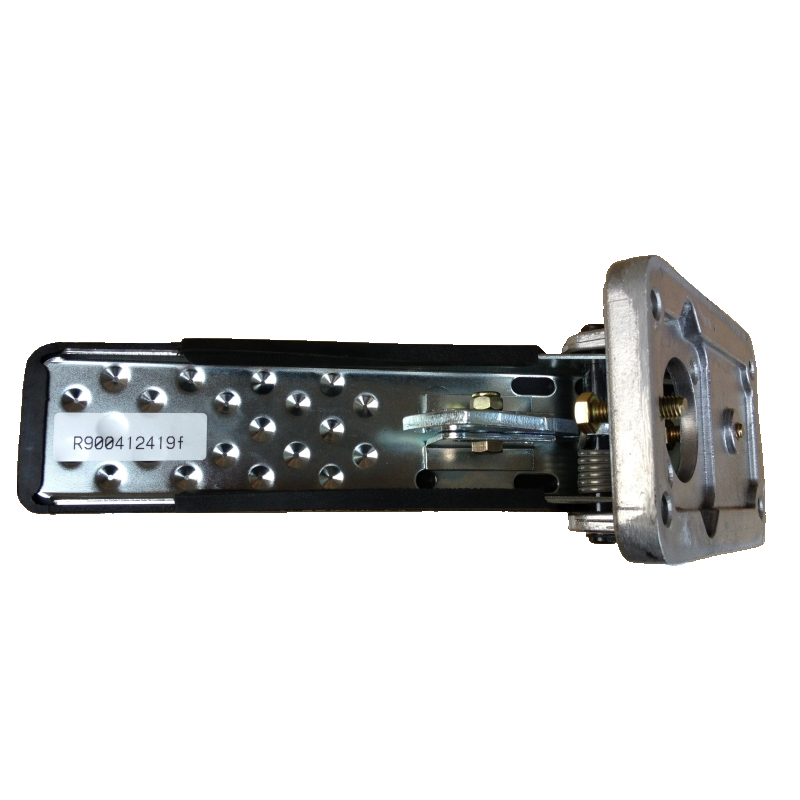

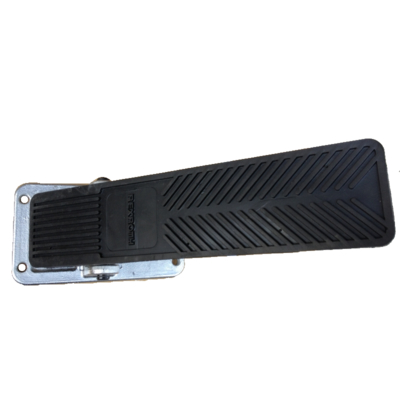

Product Description:
The key advantages and features of Rexroth brake valve pedals, along with usage precautions, are as follows:
I. Key Advantages of Pedals
Ergonomic Design
Flexible pedal angle adjustment accommodates different operating postures, reducing fatigue during extended operation. All pedals feature a non-slip rubber coating, significantly enhancing foot stability.
Precise Linear Control
A three-way, direct-actuated pressure-reducing design achieves a linear match between brake pressure and pedal force, resulting in fast response and high synchronization, ensuring smooth, impact-free braking.
Compact Modular Structure
Centralized interfaces and a rotatable mounting flange simplify piping layout. Maximum pressure capacity reaches 250 bar (LT07 series) or 125 bar (LT05 series), meeting the high-load demands of construction machinery.
II. Usage Precautions
Operational Specifications
Keep your foot in contact with the pedal with the tip of your toe or the center of your foot to avoid slipping during operation.
Adhere to a progressive pedaling rhythm: Start lightly to build pressure, gradually increase pressure, and then release pressure before stopping to cushion the impact of inertia. Do not press the accelerator and brake pedals simultaneously.
System Maintenance Key Points
Before installation, ensure the valve body connection surfaces are clean and dry to prevent oil or moisture from causing seal failure.
Regularly check the control pressure stability to avoid malfunction caused by pressure fluctuations (refer to the maintenance principles for hydraulic control valves).
The brake circuit requires strict filtration; oil cleanliness directly affects valve response accuracy.
Special Operating Conditions
Use point braking in rainy or muddy conditions to reduce the risk of wheel lock.
In emergency braking, firmly and fully depress the brake pedal and simultaneously apply the parking brake.
These design features make Rexroth brake valve pedals widely used in applications such as construction vehicles and agricultural and forestry machinery, ensuring both efficiency and safety.
| Outlet Size |
3/4 inch |
| Coil Winding |
Class H |
| Assernbly Position |
Any position |
| Valve Size |
NG 6 to NG 25 |
| Power Consumption Dc |
0.35W |
| Media Type |
Liquid or Gas |
| Material |
Metal |
| Speed |
Adjustable |
| Type |
2/2 way |
| In Channel A |
A |
