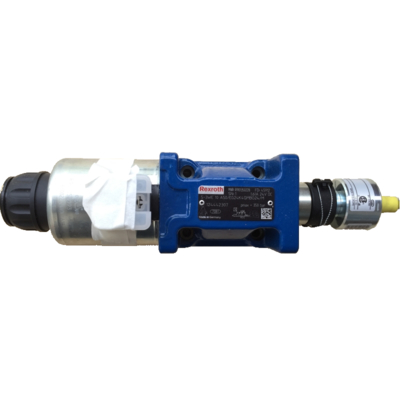

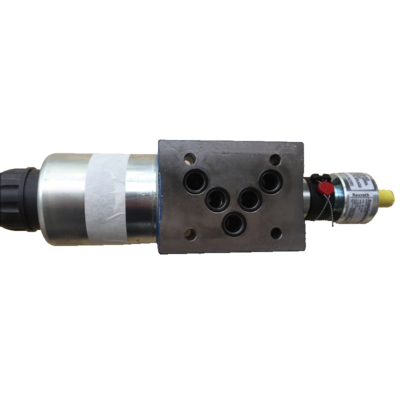

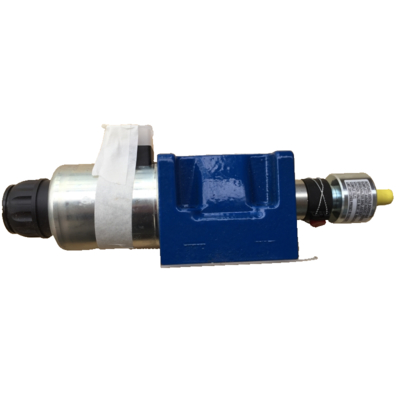

Rexroth Proportional Valve 5-3WE10A5X/EG24K4QMBG24/M Compatibility Modularity High Reliability Energy-Efficient High-Performance

Description:

The Rexroth Proportional Valve 5-3WE10A5X/EG24K4QMBG24/M is a high-performance electro-hydraulic proportional directional valve widely used in applications requiring precise control of hydraulic system flow and direction. This valve features a three-way, five-chamber design with high working pressure and flow capacity. It has a nominal bore of 10 mm.
EG24K4QMBG24/M: Indicates an electrical connection method using a 24V DC power supply, complete with an electromagnet, plug, and other accessories, suitable for modular installation. Maximum working pressure: 420 bar. Maximum flow rate: 150 L/min. Electro-hydraulic proportional control, regulating hydraulic oil flow and direction via electrical signals. 24V DC power supply with a plug-in connection for easy installation and maintenance.


Application areas:

The Rexroth Proportional Valve 5-3WE10A5X/EG24K4QMBG24/M is suitable for various industrial and engineering machinery applications, particularly excelling in scenarios requiring high-precision control and rapid response.
Industrial Automation: In automated production lines, this proportional valve can be used to control the movement of hydraulic cylinders or hydraulic motors, achieving precise position control and speed regulation. For example, in injection molding machines, hydraulic presses, and other equipment, this valve ensures efficient operation and stable product quality.
Construction Machinery: In construction machinery such as excavators and cranes, this proportional valve is used to control the direction and flow rate of oil in hydraulic systems, enabling precise operation of the equipment. For example, in the boom control of a crane, the valve can precisely control the extension and retraction speed of the cylinder based on input signals from the control lever, enhancing operational safety and efficiency.
Metallurgy and heavy machinery: In heavy equipment such as steel mills and rolling mills, this proportional valve can be used to control high-pressure hydraulic systems, enabling precise control of heavy-duty equipment. Its high pressure resistance and stability make it suitable for extreme operating conditions.
Testing and simulation equipment: In systems with high requirements for dynamic response, such as hydraulic test benches and flight simulators, this proportional valve provides high-frequency, high-precision hydraulic control to meet complex testing needs.


Advantages:

High-precision control: This proportional valve employs electro-hydraulic proportional control technology, enabling continuous, stepless regulation of hydraulic system flow and direction. Compared to traditional on/off directional control valves, it eliminates hydraulic shock and uneven operation issues, significantly improving system control precision and stability.
Fast Response: Due to its pilot-controlled structure, this valve has a fast response speed, making it suitable for applications requiring frequent start/stop operations or rapid directional changes. Its dynamic response characteristics meet high-frequency control requirements, enhancing overall system efficiency.
Energy-Efficient and High-Performance: By precisely controlling fluid flow, this valve minimizes unnecessary energy loss. For example, in low-load conditions, the system automatically reduces flow output to reduce energy waste, enabling energy-efficient operation.
High Reliability: Rexroth proportional valves are made from high-quality materials and advanced manufacturing processes, offering excellent wear resistance and contamination resistance. Their rational structural design ensures easy maintenance, a long service life, and suitability for long-term continuous operation.
Compatibility and Modularity: This valve can be seamlessly integrated with Rexroth amplifiers, sensors, controllers, and other components to build a complete electro-hydraulic proportional control system. Its modular design facilitates system expansion and maintenance.

FAQ:

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?

A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?

A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?

A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
