Maximum Pressure: | 1000 Psi | Supply Voltage: | DC24v |
---|---|---|---|
Maximum Temperature: | 80°C | After Warranty Service: | Online Support |
Ambient Temperature Range: | –20 To +60 | Actuator Type: | Solenoid |
Description:

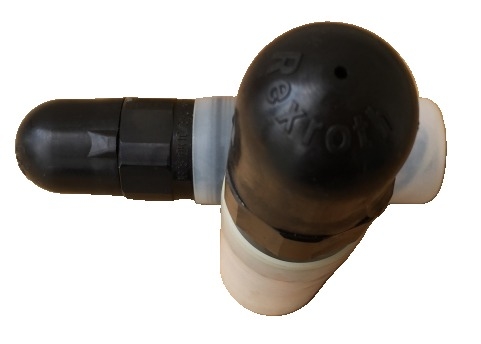

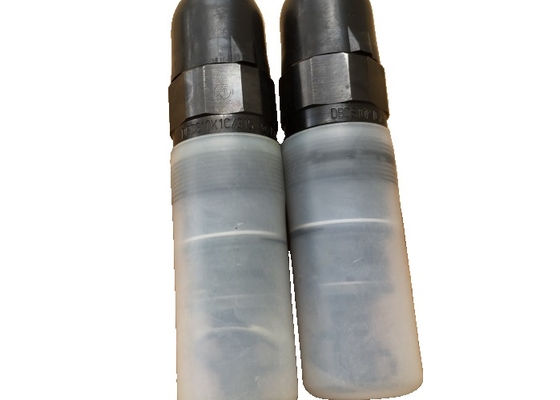

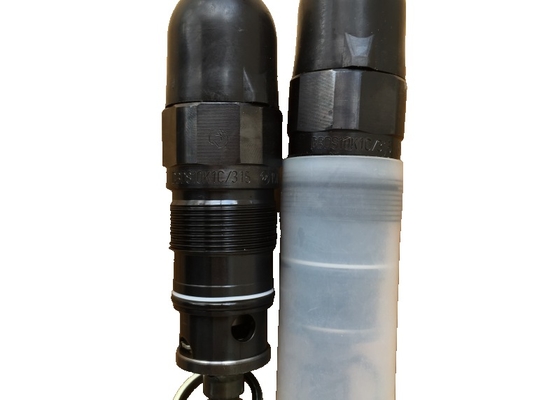

The Rexroth Relief Valve DBDS10K1C/315 is a high-performance pressure relief valve manufactured by Bosch Rexroth in Germany. This direct-acting relief valve is primarily used in hydraulic systems to control or relieve system pressure. It ensures hydraulic systems operate within a safe pressure range, preventing excessive system pressure from causing equipment damage or accidents. Its cartridge design facilitates integration into hydraulic systems. High-strength steel is typically used for excellent wear and corrosion resistance. The DBDS10K1C/315 relief valve controls hydraulic system pressure through a combination of a spring and a pilot valve. When system pressure exceeds the set point, the valve core is pushed open by the hydraulic pressure, allowing hydraulic oil to flow back to the tank through the gap between the valve core and the valve seat, limiting further increases in system pressure. This design effectively protects other components in the hydraulic system from damage caused by excessive pressure.
Applications:
Construction Machinery: Hydraulic systems in construction machinery such as excavators, loaders, and cranes are subject to high loads and frequent pressure fluctuations. The Rexroth Relief Valve DBDS10K1C/315 effectively protects hydraulic systems, preventing damage to components such as hydraulic cylinders and motors caused by excessive pressure.
Industrial Automation: In industrial automation production lines, hydraulic systems are often used to drive equipment such as manipulators, hydraulic punches, and hydraulic shears. These devices require high pressure control in the hydraulic system. The DBDS10K1C/315 relief valve ensures that the system operates at a safe pressure, improving production efficiency and equipment reliability.
Metallurgy and Heavy Machinery: In heavy equipment such as steel mills, rolling mills, and presses, hydraulic systems must operate stably under high pressure. The Rexroth Relief Valve DBDS10K1C/315's high pressure resistance and stability make it an ideal choice for these equipment. It effectively prevents equipment failures caused by pressure fluctuations, ensuring continuous production.
Marine and Offshore Engineering: Hydraulic systems on ships, such as steering gear systems, crane systems, and anchor winch systems, must operate reliably in harsh marine environments. The DBDS10K1C/315 relief valve's corrosion resistance and high reliability make it an ideal choice for marine hydraulic systems. It effectively protects hydraulic systems from damage caused by excessive pressure, ensuring safe operation of the vessel.
Test and Simulation Equipment: In systems requiring high dynamic response, such as hydraulic test benches, flight simulators, and automotive test equipment, this valve provides high-frequency, high-precision pressure control to meet complex testing requirements. For example, in a flight simulator, this valve ensures stable pressure in the hydraulic system during simulated flight, providing a realistic flight experience.
Advantages:
High-Precision Pressure Control: The DBDS10K1C/315 relief valve precisely controls hydraulic system pressure, ensuring operation within the set pressure range. This high-precision pressure control effectively protects other components in the hydraulic system and extends equipment life.
High Reliability: Made of high-quality materials and advanced manufacturing processes, this valve exhibits excellent wear resistance and contamination resistance. Its rational design allows for easy maintenance and a long service life, making it suitable for long-term, continuous operation. It maintains stable performance even in harsh operating environments. Fast Response: The DBDS10K1C/315 relief valve features fast response, opening quickly to relieve excess pressure when system pressure exceeds the set point. This rapid response effectively prevents damage to hydraulic system equipment caused by overpressure, thereby enhancing system safety.
Energy Efficiency: By precisely controlling hydraulic system pressure, the valve avoids unnecessary energy loss. For example, under low-load conditions, the system automatically reduces pressure output, reducing energy waste and achieving energy-efficient operation.
Easy Integration and Maintenance: The DBDS10K1C/315 relief valve features a cartridge-type design for easy integration into hydraulic systems. Its modular design facilitates system expansion and maintenance, reducing downtime and maintenance costs.
Compliance with International Standards: The valve complies with multiple international standards, such as the Pressure Equipment Directive 97/23/EG, ensuring the highest standards of safety and reliability. Furthermore, its design and manufacturing process undergoes rigorous quality control, ensuring high performance and reliability.
Various Configuration Options: Rexroth offers a variety of configuration options to meet diverse user needs. For example, users can select different spring stiffnesses, pilot valve types and electrical interface methods according to specific working conditions to ensure that the valve can perfectly match the hydraulic system.
Brand | Rexroth |
Model | DBDS10K1C/315 |
Color | Blue Color |
place of origin | Germany |
Material | Cast Iron |
Power Source | Electric |
