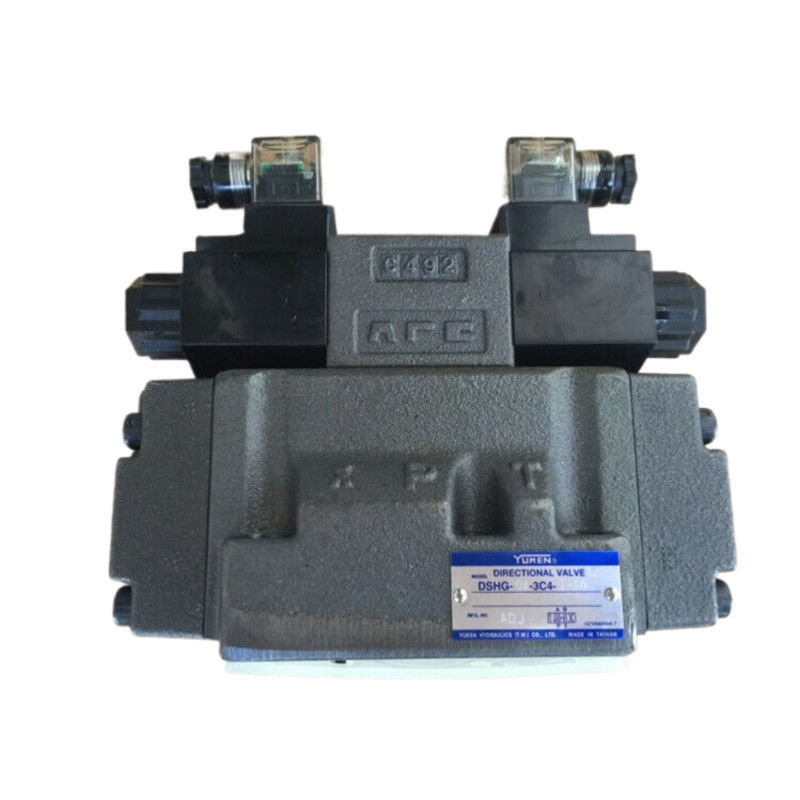

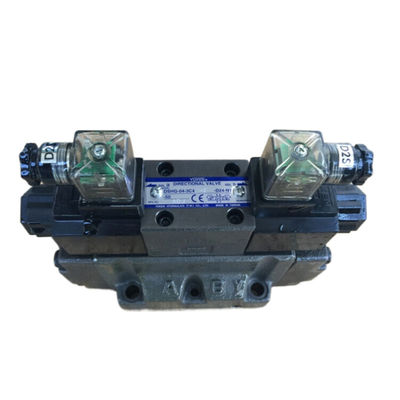

YUKEN DSHG-04-3C4-T-50 Electro-hydraulic Directional Valve High Safety New

YUKEN DSHG-04-3C4-T-50 Electro-hydraulic Directional Valve High Safety New
YUKEN DSHG-04-3C4-T-50 Electro-hydraulic Directional Valve High Safety New YUKEN DSHG-04-3C4-T-50 Electro-hydraulic Directional Valve High Safety New

Large Image :  YUKEN DSHG-04-3C4-T-50 Electro-hydraulic Directional Valve High Safety New

Product Details:
Place of Origin: Japan
Brand Name: YUKEN
Certification: cc
Model Number: DSHG-04-3C4-T-50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

YUKEN DSHG-04-3C4-T-50 Electro-hydraulic Directional Valve High Safety New

Description
Spool Type: 4-Way, 3-Position Mounting Style: Subplate
Weight: 1.2 Kg Flow Rate: 80 L/min
Actuation: Mechanical Porting: Subplate Mounting
Size: NG6 Fluid Compatibility: Mineral-based Hydraulic Fluids
Highlight:

directional hydraulic relief valve

,

directional mechanical hydraulic valve

YUKEN DSHG-04-3C4-T-50 Electro-hydraulic Directional Valve High Safety New
Product Specifications
Attribute Value
Spool Type 4-Way, 3-Position
Mounting Style Subplate
Weight 1.2 kg
Flow Rate 80 l/min
Actuation Mechanical
Porting Subplate Mounting
Size NG6
Fluid Compatibility Mineral-based hydraulic fluids
Product Features
High Dynamic Response and Control Accuracy
  • Electro-hydraulic proportional technology with fast electromagnetic drive mechanism (response time ≤50ms)
  • Optimized valve core design ensures flow switching repeatability error ≤2%
  • Ideal for high-precision, high-frequency switching industrial applications
Excellent Sealing Performance and Compact Structure
  • Seat valve type structure with conical sealing technology (leakage only 1/5 of sliding valve type)
  • Suitable for high-pressure systems (≤35MPa)
  • Modular compact design (30% smaller than traditional valves)
Diverse Control Modes and Adaptability
  • Supports external oil pilot control and internal oil control
  • Optional zero-turn spool and overlapping valve core structures
  • Compatible with various sliding valve functions (P-A/B-T type)
High Reliability and Environmental Tolerance
  • 60HRC high-hardness alloy steel valve core with ductile iron valve body
  • Withstands transient hydraulic shock (≤42MPa) and harsh environments
  • Built-in silent steel ring baffle reduces noise by 40%
Installation and Maintenance Guidelines
Installation Specifications
  • Hydraulic oil cleanliness must meet NAS 1638 7-9 standard
  • Pipeline flushing required before installation with 10μm filter
  • Back pressure valve (≥1MPa) required for internal oil control
Maintenance Recommendations
  • Check valve core movement and seal wear every 500 hours
  • Replace hydraulic oil and clean tank every 2000 hours
  • For switching issues, check for foreign matter blockage or electromagnet thrust
Technical Specifications
Model D1VW004CNJW
Type Directional Control Valve
Max Operating Pressure 350 bar
Seal Material Nitrile
Operating Temperature Range -20 to 80°C
YUKEN DSHG-04-3C4-T-50 Electro-hydraulic Directional Valve High Safety New 0
Application Scenarios
  • Injection molding machines and die casting machines for precise timing control
  • Construction machinery for coordinated movement of multiple actuators
Frequently Asked Questions
Q: Do you accept small orders?
A: Yes, we accept small orders. Please contact us for details.
Q: Can you ship to my country?
A: Yes, we can arrange shipping worldwide. We can assist with logistics if needed.
Q: What are your payment terms?
A: We accept T/T, LC at sight, and 100% full payment.
Q: What is your production lead time?
A: Typically 15 days for MOQ quantities, depending on product and order size.
Q: When can I get a quotation?
A: We usually provide quotes within 24 hours of receiving your inquiry.
