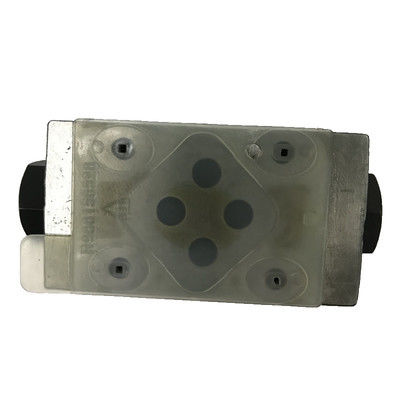

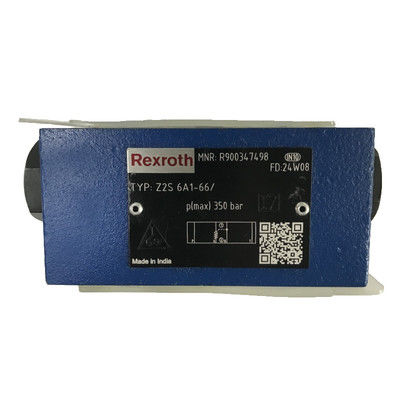

Rexroth Check Valve Z2S6A1-66 Bidirectional Flow Blocking Capability D03 Size_CETOP

Rexroth Check Valve Z2S6A1-66 Bidirectional Flow Blocking Capability D03 Size_CETOP
Rexroth Check Valve Z2S6A1-66 Bidirectional Flow Blocking Capability D03 Size_CETOP Rexroth Check Valve Z2S6A1-66 Bidirectional Flow Blocking Capability D03 Size_CETOP

Large Image :  Rexroth Check Valve Z2S6A1-66 Bidirectional Flow Blocking Capability D03 Size_CETOP

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: Z2S6A1-66
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Rexroth Check Valve Z2S6A1-66 Bidirectional Flow Blocking Capability D03 Size_CETOP

Description
Brand: Rexroth Model: Z2S6A1-66
Hydraulic Fluid: HL,HLP,HLPD,HVLP,HVLPD,HFC Seals: NBR
Weight: 0.94 Number Of Switching Positions: 2
Connection Diagram: ISO 4401-03-02-0-05 Size_CETOP: D03
Highlight:

rexroth hydraulic relief valve

,

rexroth mechanical hydraulic valve

Rexroth Check Valve Z2S6A1-66 Bidirectional Flow Blocking Capability D03 Size_CETOP
Product Specifications
Attribute Value
Brand Rexroth
Model Z2S6A1-66
Hydraulic fluid HL, HLP, HLPD, HVLP, HVLPD, HFC
Seals NBR
Weight 0.94 kg
Number of switching positions 2
Connection diagram ISO 4401-03-02-0-05
Size_CETOP D03
Product Description

The Bosch Rexroth Z2S6A1-6X (R900347498) is a high-performance, mechanically actuated industrial hydraulic valve designed for reliable operation and efficient flow control within hydraulic systems. This direct-actuated seat valve features a spool symbol A ↔ A, indicating its capability for bidirectional flow blocking, which is essential for applications requiring controlled movement or positioning.

With a cracking pressure of 0 bar and the ability to accommodate a maximum pressure of up to 315 bar, this valve ensures secure operation under high-pressure conditions. The Z2S6A1-6X valve boasts a CETOP D03 size and conforms to NFPA T3.5.1 R2-2002 D03 and ISO 4401 porting patterns, ensuring compatibility with standardized mounting surfaces and simplifying installation in sandwich plate configurations.

Key features include:

  • NBR seals suitable for various hydraulic fluids
  • Preopening features for damped decompression
  • Compact design with just 0.9 kg weight
  • Mechanical actuation for precise flow control
  • Maximum flow capacity for industrial applications
  • Options available for varying cracking pressures
Rexroth Check Valve Z2S6A1-66 Bidirectional Flow Blocking Capability D03 Size_CETOP 0
Additional Specifications
Spool symbol A1 → A2
Max. pressure 350 bar
Number of ports 4
Type of actuation Mechanical actuation
Size 6
Max. flow 80
Type of connection Sandwich plate
Frequently Asked Questions
Do you accept small orders?
Yes, we accept small orders. Please contact us for more details.
Can you ship to my country?
Yes, we can ship worldwide. If you don't have your own forwarder, we can assist with shipping arrangements.
What are your payment terms?
We accept T/T, LC at sight, or 100% full payment.
What is your production lead time?
Lead time depends on the product and order quantity. Typically 15 days for MOQ quantities.
When can I get a quotation?
We typically provide quotations within 24 hours of receiving your inquiry. Urgent requests can be prioritized.
