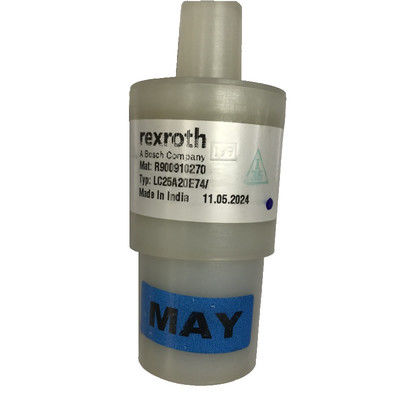

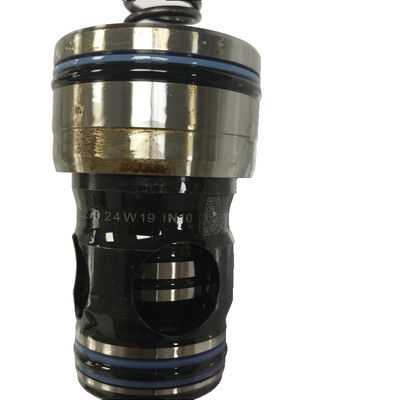

Hydraulic Rexroth Cartridge Valve LC25A20E74 ISO 7368 Connection Diagram

Hydraulic Rexroth Cartridge Valve LC25A20E74 ISO 7368 Connection Diagram
Hydraulic Rexroth Cartridge Valve LC25A20E74 ISO 7368 Connection Diagram Hydraulic Rexroth Cartridge Valve LC25A20E74 ISO 7368 Connection Diagram

Large Image :  Hydraulic Rexroth Cartridge Valve LC25A20E74 ISO 7368 Connection Diagram

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: LC25A20E74
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days

Hydraulic Rexroth Cartridge Valve LC25A20E74 ISO 7368 Connection Diagram

Description
Brand: Rexroth Model: LC25A20E74
Spool Symbol: Symbol A20E Max. Pressure: 420
Productgroup ID: 9,10,11,12,13,14 Number Of Ports: 2
Type Of Actuation: With Hydraulic Actuation Size: 25
Highlight:

Rexroth Cartridge Valve

,

Hydraulic Rexroth Cartridge Valve

,

LC25A20E74 Cartridge Valve

Hydraulic Rexroth Cartridge Valve LC25A20E74 ISO 7368 Connection diagram
Product Specifications
Attribute Value
Brand Rexroth
Model LC25A20E74
Spool symbol Symbol A20E
Max. pressure 420 bar
Productgroup ID 9,10,11,12,13,14
Number of ports 2
Type of actuation Hydraulic actuation
Size 25
Product Description

The Bosch Rexroth LC25A20E7X/ (R900910270) is a high-performance industrial hydraulic valve designed for bidirectional flow control in hydraulic systems. This spool type AE seat valve is pilot-operated with a cracking pressure of 5 bar and an area ratio tailored for efficient operation.

Key features include:

  • Maximum pressure capacity of 420 bar
  • Hydraulic actuation for reliable switching of oil flow direction
  • Cartridge valve connection conforming to ISO 7368 diagrams
  • Two switching positions
  • Compact block design for integration into control blocks
  • NBR seals compatible with various hydraulic fluids (HL, HLP, HLPD, HVLP, HVLPD, HFC)
  • Weight: 0.46641 kg
  • Maximum flow rate: 900 liters per minute

The valve's versatile design allows for pressure, directional, and throttle functions when controlled by appropriate pilot valves. Its pressure-dependent operation involves three critical pressurized areas for functional versatility, making it suitable for demanding industrial applications.

Hydraulic Rexroth Cartridge Valve LC25A20E74 ISO 7368 Connection Diagram 0
