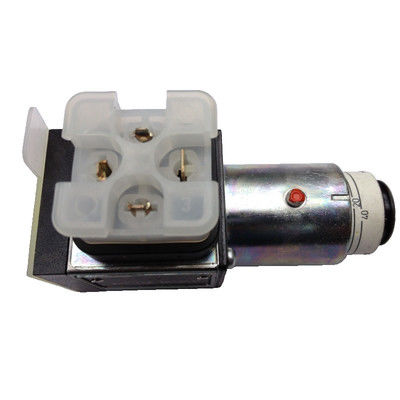

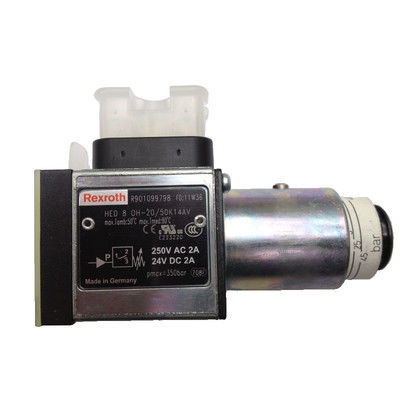

Rexroth Pressure Switch HED8OH-20 50K14AV With Adjustable Pressure Range

The Bosch Rexroth HED 8 OH-2X/50K14AV (R901099798) is a high-precision piston type pressure switch designed for versatile hydraulic applications. Key features include:

• Adjustable pressure range with maximum operating pressure of 315 bar
• Micro switch with NC/NO contact functions for potential-free switching (0.5A max)
• High repetition accuracy (<1% of set pressure) with small hysteresis
• ISO standard flange connection for easy subplate or pipeline installation
• Multiple adjustment options including spindle, rotary knobs, and visual scales
• DIN EN compliant cubic connector (supply voltage 24-240V AC/DC)
• FKM seals compatible with various hydraulic fluids (HL, HLP, HLPD, HVLP, etc.)
• Certifications: CE, CCC, UL, RoHS compliant
• Compact design weighing just 0.58 kg

Ideal for precise control in hydraulic systems, this pressure switch is designed for low-vibration environments and protected against hydraulic pressure surges.
