Parker D3W8CNYK56 Solenoid Hydraulic Valve ‌High Sensitivity Safety New

Parker D3W8CNYK56 Solenoid Hydraulic Valve ‌High Sensitivity Safety New
Parker D3W8CNYK56 Solenoid Hydraulic Valve ‌High Sensitivity Safety New Parker D3W8CNYK56 Solenoid Hydraulic Valve ‌High Sensitivity Safety New Parker D3W8CNYK56 Solenoid Hydraulic Valve ‌High Sensitivity Safety New

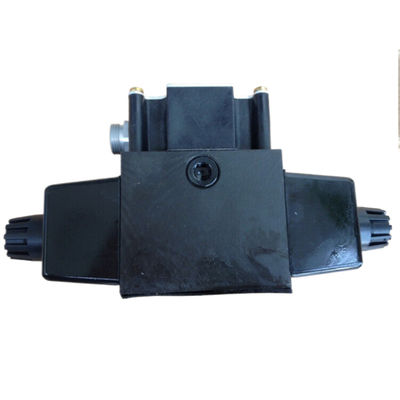

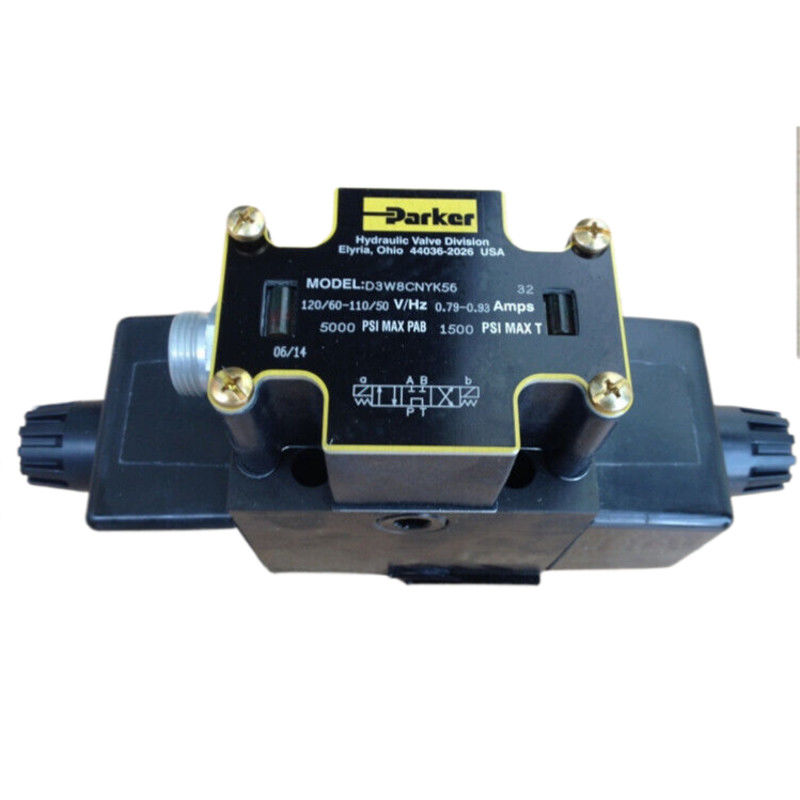

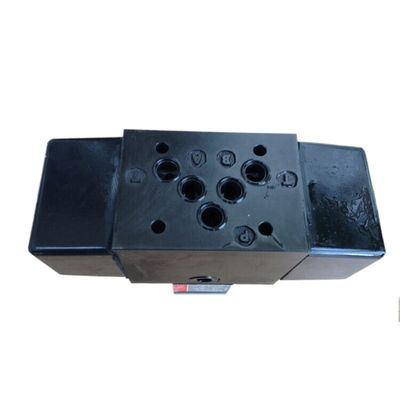

Large Image :  Parker D3W8CNYK56 Solenoid Hydraulic Valve ‌High Sensitivity Safety New

Product Details:
Place of Origin: America
Brand Name: Parker
Certification: cc
Model Number: D3W8CNYK56
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/100-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3 work days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Parker D3W8CNYK56 Solenoid Hydraulic Valve ‌High Sensitivity Safety New

Description
Operating Pressure: Up To 5000 Psi Fkm Seals: -20 … +80
Installation Position: Any Leakage Rate: Less Than 0.5 Ml/min
Locknut Hex Size: 9/16 In. Power: 45W(start 180W)
Response Time: <10 Ms Fluid Temperature Range: -20 ….. +80 °C
Highlight:

Safety Hydraulic Valve

,

Safety Solenoid Hydraulic Valve

,

Parker D3W8CNYK56 Solenoid Hydraulic Valve

Parker D3W8CNYK56 Solenoid Hydraulic Valve - High Sensitivity Safety
Product Specifications
Attribute Value
Operating Pressure Up to 5000 psi
Fkm Seals -20 … +80 °C
Installation Position Any
Leakage Rate Less than 0.5 ml/min
Locknut Hex Size 9/16 in.
Power 45W (start 180W)
Response Time <10 ms
Fluid Temperature Range -20 … +80 °C
Protection Class IP65
Certifications ISO 9001:2015
Valve Connection Threaded, Flanged, Welded
Model D3W8CNYK56
Spool Type 4-Way, 3-Position
Body Style Straight-through
Product Overview

The Parker D3W8CNYK56 solenoid hydraulic valve offers exceptional performance with high sensitivity, rapid response, and strong controllability. Its electromagnetic operation provides precise control with switching speeds typically completed within milliseconds.

Key Advantages
  • High sensitivity: Rapid response to control signals for precise operation
  • Fast response time: Switching completed within milliseconds
  • Excellent controllability: Easy integration with automated systems
  • Wide adaptability: Suitable for various voltages, working modes, and media types
  • Energy efficient: Low power consumption compared to mechanical alternatives
  • Safety designed: Effective prevention of internal and external leakage
  • Compact design: Space-saving installation with simple maintenance
Parker D3W8CNYK56 Solenoid Hydraulic Valve ‌High Sensitivity Safety New 0
Usage Guidelines
Media Characteristics

Ensure the fluid matches the calibrated medium in the solenoid valve series model. The fluid temperature must remain below the valve's calibrated temperature, with liquid viscosity generally below 20CST.

Installation Environment

Standard models are not waterproof. Select waterproof versions when required by environmental conditions.

Maintenance Recommendations

Regular inspection and maintenance can extend service life and prevent common issues like contamination.

Troubleshooting

Common issues include valve failure, coil burnout, or jamming. Solutions include tightening connections, replacing coils, or cleaning valve components.
