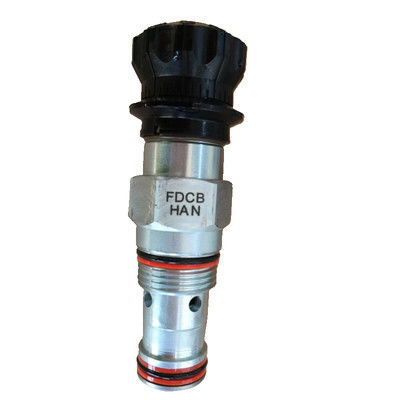

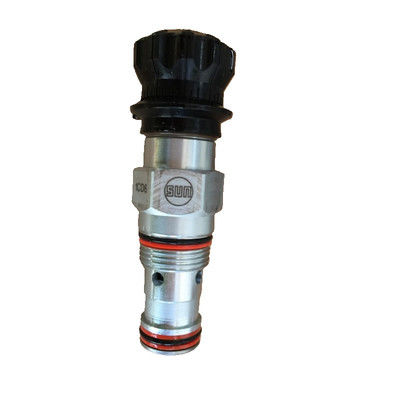

SUN Direction Valve FDCB-HAN With Locknut For Secure Installation And Adjustment

SUN Direction Valve FDCB-HAN With Locknut For Secure Installation And Adjustment
SUN Direction Valve FDCB-HAN With Locknut For Secure Installation And Adjustment SUN Direction Valve FDCB-HAN With Locknut For Secure Installation And Adjustment

Large Image :  SUN Direction Valve FDCB-HAN With Locknut For Secure Installation And Adjustment

Product Details:
Place of Origin: American
Brand Name: SUN
Certification: cc
Model Number: FDCB-HAN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

SUN Direction Valve FDCB-HAN With Locknut For Secure Installation And Adjustment

Description
Brand: SUN Model: FDCB-HAN
Cavity: T-5A Series: 2
Capacity: 12 Gpm Maximum Operating Pressure: 5000 Psi
Adjustment - No. Of CCW Turns From Fully Closed To Fully Open: 5 Valve Hex Size: 1 1/8 In
Highlight:

Secure Installation SUN Direction Valve

,

FDCB-HAN Direction Valve

,

SUN Direction Valve With Locknut

SUN Direction Valve FDCB-HAN With Locknut For Secure Installation And Adjustment
Product Specifications
Attribute Value
Brand SUN
Model FDCB-HAN
Cavity T-5A
Series 2
Capacity 12 gpm
Maximum Operating Pressure 5000 psi
Adjustment - No. of CCW Turns from Fully Closed to Fully Open 5
Valve Hex Size 1 1/8 in
Product Description

The SUN FDCB-HAN Direction Valve is a fully adjustable, pressure-compensated flow control with reverse-flow check, designed for precise flow regulation in meter-in or meter-out applications with wide pressure fluctuations.

  • Infinitely adjustable from nearly closed up to maximum flow
  • Integral high-capacity check valve provides unrestricted flow from port 2 to port 1
  • Balanced adjustment mechanism for easy adjustment even at high pressures
  • Sharp-edged orifice design minimizes flow variations due to viscosity changes
  • Minimum leakage of 0.2 gpm (0.8 L/min) when in shut-off position
  • All 2-port flow control cartridges are physically and functionally interchangeable
Note: Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum-based fluids, greases, and lubricants will damage the seals.
Additional Specifications
Valve Installation Torque 45 - 50 lbf ft
Adjustment Screw Internal Hex Size 5/32 in
Locknut Hex Size 9/16 in
Locknut Torque 80 - 90 lbf in
Model Weight 0.62 lb
Seal kit - Cartridge (Buna) 990203007
Seal kit - Cartridge (EPDM) 990203014
Seal kit - Cartridge (Viton) 990203006
