Rexroth Hydraulic Relief Valve DREE10-6X/315YMG24K31A1M With Linearized Pressure

Rexroth Hydraulic Relief Valve DREE10-6X/315YMG24K31A1M With Linearized Pressure
Rexroth Hydraulic Relief Valve DREE10-6X/315YMG24K31A1M With Linearized Pressure Rexroth Hydraulic Relief Valve DREE10-6X/315YMG24K31A1M With Linearized Pressure

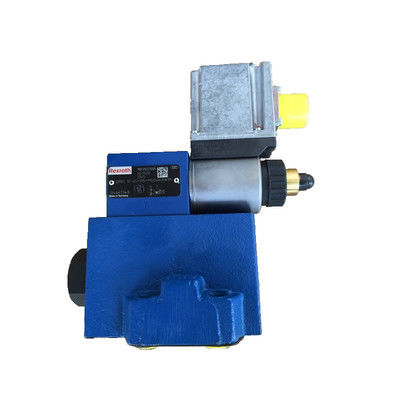

Large Image :  Rexroth Hydraulic Relief Valve DREE10-6X/315YMG24K31A1M With Linearized Pressure

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: DREE10-6X/315YMG24K31A1M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days
Contact Now

Rexroth Hydraulic Relief Valve DREE10-6X/315YMG24K31A1M With Linearized Pressure

Description
Brand: Rexroth Model: DREE10-6X/315YMG24K31A1M
Spool Symbol: B → A Max. Pressure: 315
Productgroup ID: 9,10,11,12,13,14 Number Of Ports: 3
Type Of Actuation: Electrical With Integrated Electronics Size: 10
Highlight:

DREE10-6X/315YMG24K31A1M Hydraulic Relief Valve

,

Hydraulic Relief Valve With Linearized Pressure

Rexroth Hydraulic Relief Valve DREE10-6X/315YMG24K31A1M With Linearized Pressure
Product Specifications
Attribute Value
Brand Rexroth
Model DREE10-6X/315YMG24K31A1M
Spool symbol B → A
Max. pressure 315 bar
Productgroup ID 9,10,11,12,13,14
Number of ports 3
Type of actuation Electrical with integrated electronics
Size 10
Product Overview

The Bosch Rexroth DREE10-6X/315YMG24K31A1M (R901278309) is a high-performance industrial hydraulic valve designed for reliable pressure reduction in accordance with the command value signal.

Key Features
  • Size B with electrical actuation and integrated electronics
  • Maximum operating pressure of 315 bar
  • Pilot-operated spool valve with external pilot oil return
  • Electrical connection with connector pole PE (DIN EN standards)
  • Subplate mounting (CETOP D standard and ISO connection diagrams)
  • 24 VDC supply voltage with integrated CE conformity (EMC Directive EU)
  • NBR seals compatible with HL, HLP, HLPD, HVLP, HVLPD, and HFC hydraulic fluids
  • Precision pressure control with proportional solenoid
  • Optional check valve for backflow prevention
  • Optional spring-loaded pressure relief valve for maximum pressure limitation
  • Linearized pressure-command value characteristic curve
  • Integrated electronics (OBE) for streamlined operation
Technical Specifications
Max. flow 300
Size_CETOP D05
Connection diagram ISO 5781
Supply voltage 24 VDC
Number of switching positions 2
Weight 4.821 kg
