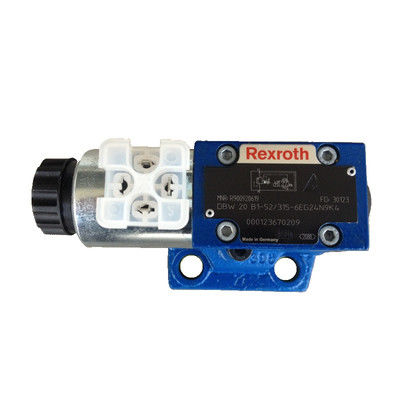

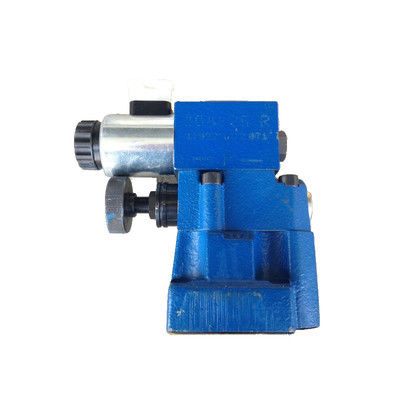

Rexroth Hydraulic Relief Valve DBW20B1-52 315-6EG24N9K4 For Precise Pressure Limitation

Rexroth Hydraulic Relief Valve DBW20B1-52 315-6EG24N9K4 For Precise Pressure Limitation
Rexroth Hydraulic Relief Valve DBW20B1-52 315-6EG24N9K4 For Precise Pressure Limitation Rexroth Hydraulic Relief Valve DBW20B1-52 315-6EG24N9K4 For Precise Pressure Limitation

Large Image :  Rexroth Hydraulic Relief Valve DBW20B1-52 315-6EG24N9K4 For Precise Pressure Limitation

Product Details:
Place of Origin: Germany
Brand Name: Rexroth
Certification: cc
Model Number: DBW20B1-52 315-6EG24N9K4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: RMB/1000-10000/PC
Packaging Details: wooden case/carton
Delivery Time: 3days
Payment Terms: T/T
Supply Ability: 10PCS/days

Rexroth Hydraulic Relief Valve DBW20B1-52 315-6EG24N9K4 For Precise Pressure Limitation

Description
Brand: Rexroth Model: DBW20B1-52 315-6EG24N9K4
Type Of Connection: Subplate Mounting Connection Diagram: ISO 6264-08-13
Supply Voltage: 24 VDC Number Of Switching Positions: 2
Weight: 5.350 Seals: NBR
Highlight:

DBW20B1-52 Hydraulic Relief Valve

,

315-6EG24N9K4 Hydraulic Relief Valve

,

Rexroth Hydraulic Relief Valve

Rexroth Hydraulic Relief Valve DBW20B1-52 315-6EG24N9K4 For Precise Pressure Limitation
Product Specifications
Attribute Value
Brand Rexroth
Model DBW20B1-52 315-6EG24N9K4
Type of connection Subplate mounting
Connection diagram ISO 6264-08-13
Supply voltage 24 VDC
Number of switching positions 2
Weight 5.350
Seals NBR
Product Description

The Bosch Rexroth DBW20B1-5X/315-6EG24N9K4 (R900920619) is a high-performance industrial hydraulic valve designed for reliable pressure limitation and solenoid unloading via a built-on directional spool valve.

This pilot-operated pressure relief valve includes:

  • Main valve with spool insert
  • Pilot control valve with adjustable pressure element
  • Integrated directional spool valve for precise hydraulic system control

Operating within a pressure adjustment range of up to 315 bar with maximum flow rate of 150 l/min, this model features mechanical actuation and electrical connector compatible with 4-pole PE (EN 175301-803 standards). Designed for subplate mounting with ISO standard porting patterns (NG6, NG10, NG16).

Additional features:

  • Weight: 3.7 kg
  • NBR seals compatible with HL, HLP, HLPD, HVLP, HVLPD, and HFC hydraulic fluids
  • Optional switching shock damping for pressure peak mitigation
  • Multiple pressure adjustment options (rotary knobs, sleeves with hexagon and protective cap)
  • Available as screw-in cartridge valve for threaded connection
Rexroth Hydraulic Relief Valve DBW20B1-52 315-6EG24N9K4 For Precise Pressure Limitation 0
