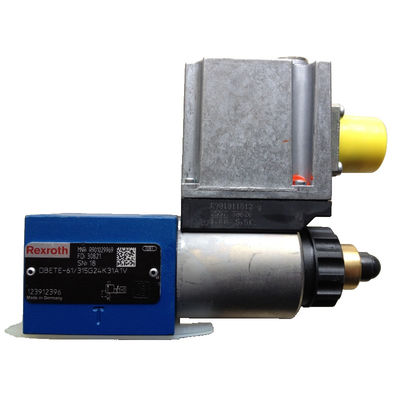

Rexroth Hydraulic Relief Valve DBETE-6X/315G24K31A1V With Analog Command Value Signal

Product Description

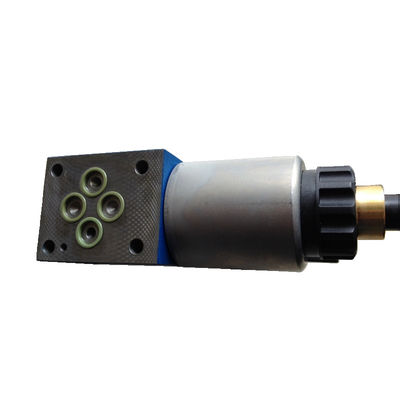

The Bosch Rexroth DBETE-6X/315G24K31A1V (R901029969) is a high-performance industrial hydraulic valve designed for reliable pressure limitation in accordance with the command value signal. This direct-actuated proportional pressure relief valve is equipped with integrated electronics and is ideal for remote control applications. It features a size 6 CETOP D subplate mounting connection, conforming to ISO standards, and an electrical connection described as a connector pole + PE according to EN 175301-803. The DBETE-6X/315G24K31A1V has a maximum pressure rating of 315 bar and can handle a maximum flow of up to 60 l/min. Its electrical actuation is facilitated through an analog command value signal ranging from 0 to 10 V. The valve's construction includes FKM seals, ensuring compatibility with various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR.

This model operates by converting an electric command value into mechanical force via its proportional solenoid with central thread and detachable coil. The resulting force acts on the valve poppet which interacts with the valve seat to control the connection between ports P and T or Y. This precise control allows for stepless setting of system pressure limits. The DBETE-6X/315G24K31A1V comes with CE conformity marking for electromagnetic compatibility within the EU. It has a supply voltage requirement of 24 VDC and features one switching position. The weight of this component is approximately 2 kg. In summary, the Bosch Rexroth DBETE-6X/315G24K31A1V offers advanced control for hydraulic systems requiring precise pressure limitation through its robust design and integrated electronic capabilities.
