Rexroth Hydraulic Relief Valve DBDH6P1X/100 For Limiting System Pressure Up To 350 Bar Pressure Rating

Product Description

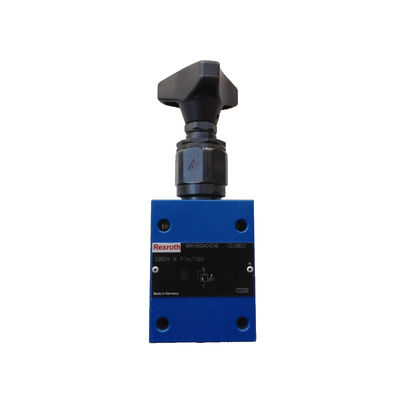

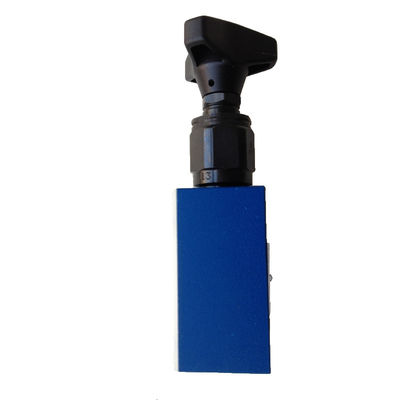

The Bosch Rexroth DBDH6P1X/100 (R900424246) is a direct operated seat valve specifically designed for limiting system pressure. This model is part of the DBD series of pressure relief valves, which are known for their reliability and precision in controlling hydraulic system pressures. The valve consists of a sleeve, spring, and poppet with a damping piston for pressure ratings up to 315 bar, or alternatively, a ball for pressure ratings up to 630 bar. It features an adjustable mechanism that allows for stepless setting of system pressure. The DBDH6P1X/100 valve operates by utilizing the force of the spring to maintain the poppet or ball against the seat until the system pressure exceeds the pre-set value. At this point, the poppet or ball opens against the spring force, allowing hydraulic fluid to flow from channel P to channel T.

The stroke of the poppet is carefully limited by embossing within the valve structure. Bosch Rexroth has engineered this valve with several options for adjustment types including a sleeve with hexagon and protective cap, rotary knob, hand wheel, and lockable rotary knob – all designed to prevent loss during operation. Moreover, they have addressed potential issues by ensuring that if minimum pressure does not settle when completely unloaded, users can pull back the adjustment element to its stop before screwing it in again for increased pressure adjustment. The DBDH6P1X/100 is versatile in its applications; it can be used as a screw-in cartridge valve or for threaded connections as well as subplate mounting. The component series X denotes that it can withstand a maximum operating pressure of up to 315 bar. This valve's robust design and multiple adjustment options make it suitable for a wide range of hydraulic applications where precise pressure relief is critical.

FAQ

Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
