Description:

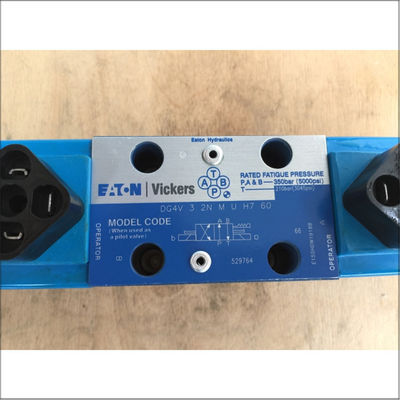

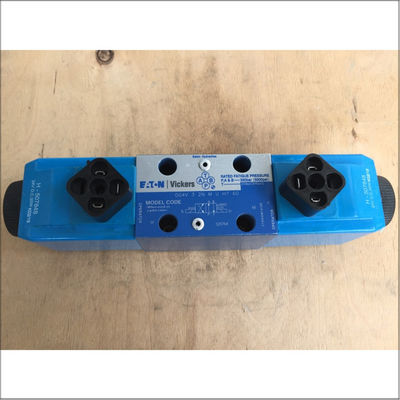

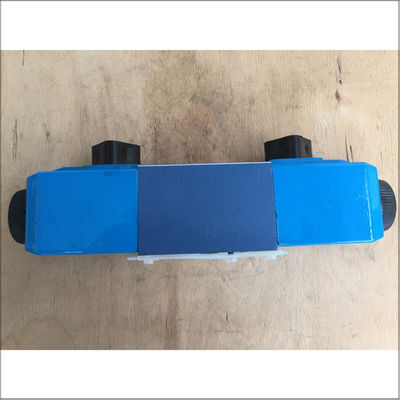

The Vickers Proportional Valve DG4V-3-2N-M-U-H7-60 is a high-performance electromagnetic proportional directional control valve manufactured by Eaton Corporation. It belongs to the 60 series, features electromagnetic drive, and has a single-stage spool valve structure. The valve has a rated operating pressure of 350 bar (5000 psi) and a maximum flow rate of 80 L/min (21 USgpm) . Its electrical connections use the ISO 4400 (DIN 43650) standard interface, with a coil rated voltage of 24 VDC. The valve body features a wet electromagnetic design with a threaded spool structure, allowing the coil to be replaced without disassembling the valve body. Additionally, the valve operates within a temperature range of -20°C to 70°C (-4°F to 158°F) and is suitable for various mineral oil media.
Application Areas:
The Vickers Proportional Valve DG4V-3-2N-M-U-H7-60 is widely used in various industrial fields. It is suitable for applications requiring precise control of hydraulic system flow and direction, such as:
Metallurgical Equipment: Used to control the hydraulic systems of rolling mills, continuous casting machines, and other equipment.
Mining Machinery: Such as hydraulic control systems for excavators, loaders, and other equipment.
Machine tools: Used for hydraulic clamping and tool control in CNC machine tools.
Woodworking machinery: Control of hydraulic-driven cutting and forming equipment.
Construction machinery: Used in the hydraulic systems of equipment such as concrete mixers and cranes.
Testing equipment and simulation: Used to simulate testing environments for hydraulic systems.
Additionally, this valve is widely applied in industries such as papermaking, plastic molding, shipbuilding, and marine engineering.
Advantages:
Efficient control: This valve can efficiently control larger hydraulic power without increasing the power consumption of the solenoid. Its optimized valve body, spool, and spool stroke design ensure that the maximum pressure drop is only 2.5 bar (36 psi) at a flow rate of 30 L/min (7.9 USgpm), thereby reducing energy consumption and improving system efficiency.
High reliability: The valve features spring force and DC solenoid force characteristic curves, ensuring reliable spool position selection even under extreme operating conditions. Additionally, it has undergone over 20 million cycle tests, demonstrating excellent durability and fatigue life.
Easy maintenance: The wet solenoid and threaded core tube design allow for coil replacement without disassembling the valve body, preventing hydraulic oil leakage or system contamination.

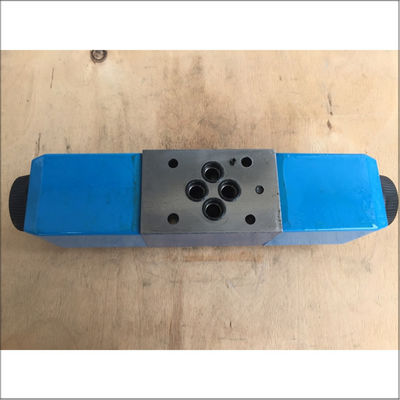

Flexible Installation: The valve body mounting surface complies with ISO 4401 standards, enabling compatibility with various international standard interfaces. Additionally, its electrical connections use standard interfaces, simplifying wiring work.
Multi-Medium Compatibility: This valve can accommodate multiple hydraulic oil media without requiring seal replacement.
Compact Design: When used with Vickers® SystemStakTM valves and base plates, it enables a compact and cost-effective system design.
| Brand |
Vickers |
| Model |
DG4V-3-2N-M-U-H7-60 |
| Color |
Blue color |
| place of origin |
America |
| Material |
Cast Iron |
| Power Source |
Electric |
FAQ:
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
