Description:

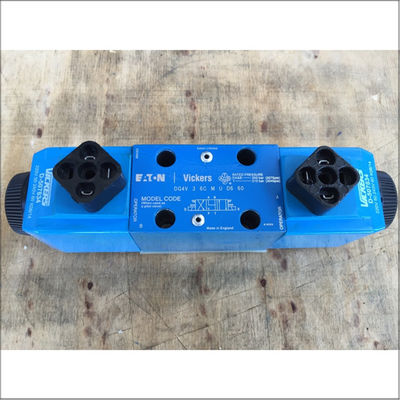

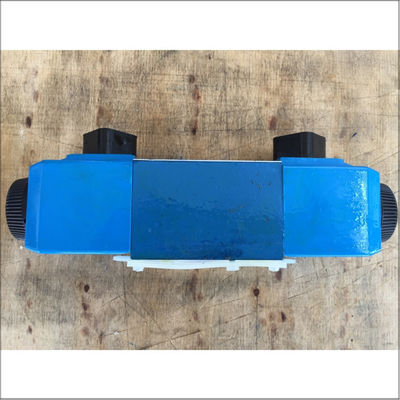

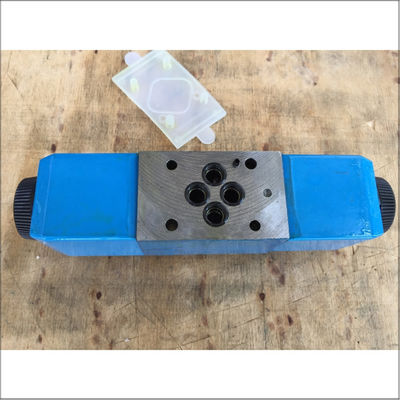

The Vickers Proportional Valve DG4V-3-6C-M-U-D6-60 is a high-performance electromagnetically operated directional control valve manufactured by Eaton Corporation, belonging to the DG4V-3 series. This series of valves is specifically designed to meet the diverse control requirements of hydraulic systems in industrial applications, enabling efficient guidance and stoppage of fluid flow within hydraulic systems. This valve offers multiple configuration options, including three-way or four-way functionality, to accommodate different system requirements. It can operate at a maximum working pressure of 350 bar (5000 psi), and under different spool valve models and coil power ratings, the maximum flow rate can reach 80 l/min (21 USgpm). Additionally, the valve's mounting interface complies with the international standard ISO 4401, size 03, and is compatible with relevant international standards.
Application Areas:
The Vickers Proportional Valve DG4V-3-6C-M-U-D6-60 is widely used in multiple industrial fields, primarily including:
Machinery Manufacturing: Used in machine tools, woodworking machinery, and other equipment to control the direction of movement of hydraulic cylinders or hydraulic motors.
Mining and Metallurgy: Used in mining machinery and metallurgical equipment to control the hydraulic systems of heavy-duty machinery.
Plastic and Rubber Processing: Used in plastic molding machines, rubber molding machines, and other equipment to precisely control the movement of hydraulic cylinders.
Construction and Engineering Machinery: Used in the hydraulic systems of construction machinery such as excavators and loaders to achieve complex motion control.
Automated Production Lines: Used in automated production lines to control hydraulic-driven robots and automated equipment.
Advantages:
Efficient control and energy savings: This valve achieves a minimum pressure drop of only 2.5 bar (36 psi) at a flow rate of 30 l/min through optimized valve body, spool, and spool stroke design. This not only reduces energy consumption but also improves the overall efficiency of the system.
High reliability: Featuring a wet-type solenoid design, the threaded insert core tube allows the coil to be replaced without disassembling the valve, preventing hydraulic oil leakage or system contamination. Additionally, the spring force and DC solenoid force characteristics are designed to ensure spool position selection under extreme operating conditions, enhancing valve reliability.
Installation Flexibility: Multiple solenoid connector options and mounting positions are available, offering flexible installation configurations. The mounting interfaces comply with international standards, ensuring compatibility with various hydraulic systems.
Multi-Fluid Compatibility: The valve can accommodate multiple fluids without requiring seal replacement, enhancing system versatility and adaptability.
Quick maintenance and replacement: Coil replacement is simple and quick, without the need to disassemble the entire valve, reducing maintenance time and costs.
High flow and pressure capability: Capable of withstanding pressures up to 350 bar (5000 psi) and achieving flow rates up to 80 l/min in different configurations.
Electromagnetic compatibility: Complies with the European Electromagnetic Compatibility Directive (EMC) 2004/108/EC, ensuring stable operation in complex electromagnetic environments.
Compact design: When used with Vickers® SystemStakTM valves and base plates, it enables a compact and cost-effective system design.
Long lifespan and high durability: Tested for over 20 million cycles, demonstrating excellent fatigue life and durability.
| Brand |
Vickers |
| Model |
DG4V-3-6C-M-U-D6-60 |
| Color |
Blue color |
| place of origin |
America |
| Material |
Cast Iron |
| Power Source |
Electric |
