Rexroth Direction Valve 4WE10G33/CG24N9K4 Optimize Your Hydraulic System High Performance

Product Description

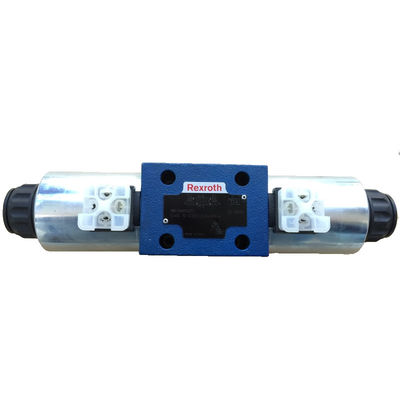

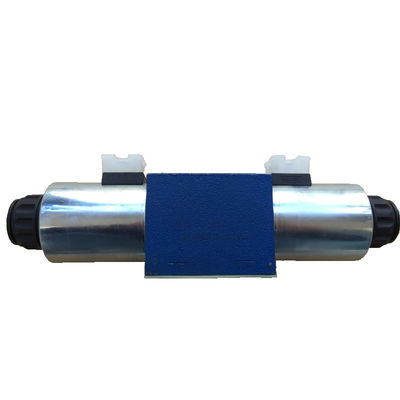

The Bosch Rexroth 4WE10G3X/CG24N9K4 (R900594277) is a high-performance directional spool valve designed to control the start, stop, and direction of fluid flow within a hydraulic system. The valve comprises a robust housing, up to two wet-pin electronic solenoids, a control spool, and return springs. The solenoids operate the spool by exerting force through a plunger, transitioning it from its rest position to an active position, thus dictating the flow direction between ports. Featuring manual override capabilities, this valve can be manually actuated in the absence of electrical power. It is crucial that the pressure chamber for the solenoid is filled with oil to ensure optimal operation. The 4WE10G3X/CG24N9K4 offers configurations with or without spring return and with or without detent for locking the control spool in place for energy-efficient usage. However, it's important to note that pressure peaks can cause unintended spool movements when using valves with detents; separate return lines or check valves are recommended solutions.

This Bosch Rexroth valve supports various applications due to its adaptability with throttle inserts in channels P, A, B, or T to manage flow resistance under different operating conditions. The unit is designed according to ISO porting patterns and features high-power AC solenoids that have detachable coils rotatable by 90 degrees for easy maintenance and coil replacement without opening the pressure-tight chamber. Electrical connections are versatile with options for individual or central connections. With a maximum operating pressure of 350 bar and capable of handling maximum flows up to 120 l/min., this size 10 component from series X and X2 is well-suited for demanding hydraulic applications requiring precise control over fluid dynamics. Optional auxiliary devices can be added to enhance operational flexibility and control precision.

FAQ

Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
