Rexroth Direction Valve 4WE6D6X/EG24N9K4/B10 Precision For Industrial

Product Description

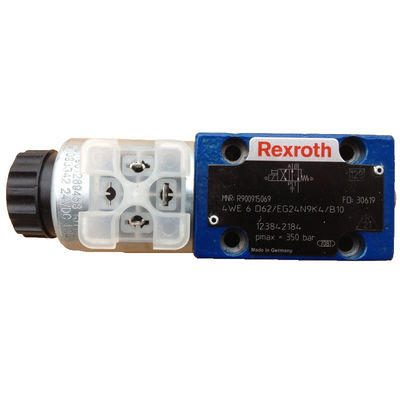

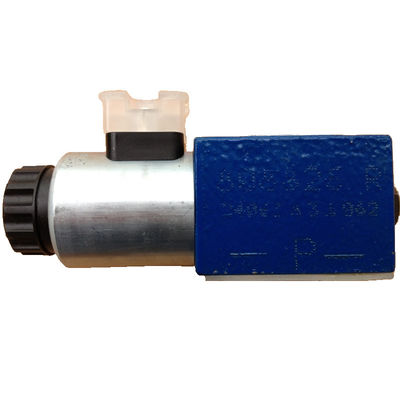

The Bosch Rexroth 4WE6D6X/EG24N9K4/B10 (R900915069) is a high-performance industrial hydraulic valve designed for reliable operation and precise control of oil flow direction in hydraulic systems. This direct-actuated spool valve features the D spool symbol, capable of withstanding a maximum operating pressure of 350 bar and facilitating maximum flows of DC 80 l/min and AC 60 l/min. It is equipped with two solenoids for actuation, size 6, and conforms to the CETOP R35H pattern as well as ISO 4401 porting pattern standards. The valve can be mounted via subplate connection and includes a connector pole PE according to EN 175301-803 standards for its electrical connections. Offering both three-position (with spring return) and two-position (without spring return) configurations, it provides versatility in application.

The unit also features optional auxiliary manual actuation, spool position monitoring, and an optional throttle insert for situations where flow during switching exceeds the valve's performance limit. Designed for use with a variety of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types with NBR seals ensuring compatibility and longevity. This model operates on a supply voltage of 24 VDC and has a weight of approximately 2.4 kg. The Bosch Rexroth directional valves are known for their robustness and are commonly used in applications requiring precise control such as manufacturing equipment, mobile machinery, and other industrial automation systems. The solenoid coil can be rotated by 90 degrees if needed for installation flexibility and comes with optional UL approval marking or CSA approval. In summary, the Bosch Rexroth Model Code: 4WE6D6X/EG24N9K4/B10 is a versatile directional control valve suitable for various high-demand applications that require robust performance and reliability.
