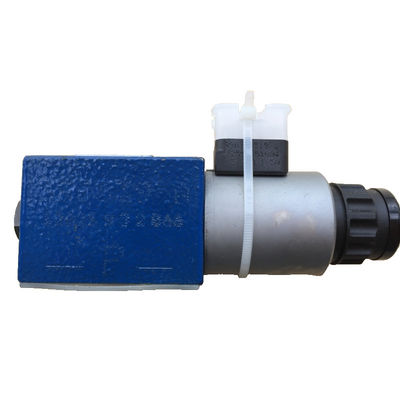

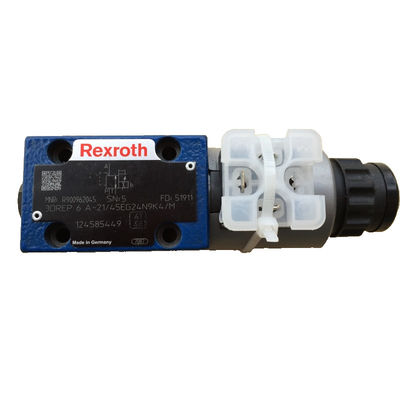

Rexroth Direction Valve 3DREP6A-2X/45EG24N9K4/M With Pressure Adjustment Capabilities And Electrical Connection

Product Description

The Bosch Rexroth 3DREP6A-2X/45EG24N9K4/M (R900962045) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to the command value signal. This direct-actuated spool valve features pressure adjustment capabilities up to a maximum pressure, with a concealed manual override and auxiliary actuation for enhanced control. It is equipped with an electrical connection that includes a connector polePE in accordance with DINEN standards. The 3DREP6A-2X/45EG24N9K4/M is notable for its spool symbol P A A T and can accommodate a maximum flow rate. It utilizes subplate mounting for installation, with the connection diagram conforming to NFPA T.. R D SizeCETOP D and ISO standards. The supply voltage required for operation is VDC, and it supports a number of switching positions.

This model has been engineered with a weight that ensures stability in operation while maintaining ease of handling during installation or maintenance. The seals are made from NBR, making them compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. In terms of functionality, the valve's pressure in ports A or B is set by the proportional solenoids which are controllable based on the current supplied. With deenergized solenoids, the control spool remains in the central position allowing free flow of hydraulic fluid to the tank. Upon energizing a solenoid, the control spool moves to modulate the connection between ports P and B as well as A and T, adjusting flow characteristics progressively. An optional hand override feature allows manual manipulation of the control spool without solenoid energization; however users must be cautious as accidental activation may result in uncontrolled machine movements. The 3DREP6A-2X/45EG24N9K4/M can be configured either with integrated control electronics (type DREPE) or external electronics (type DREP), providing flexibility based on application requirements.
