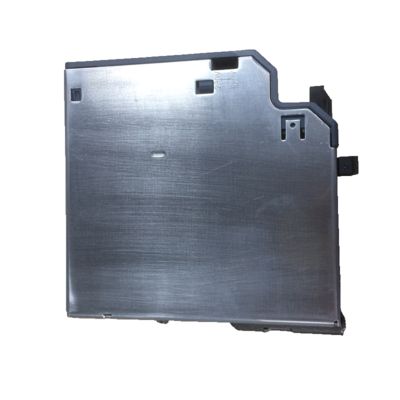

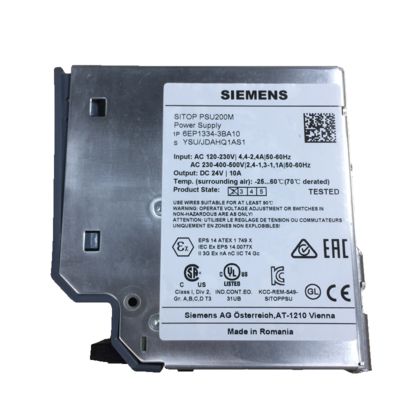

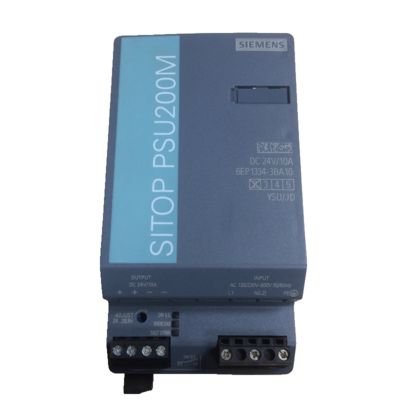

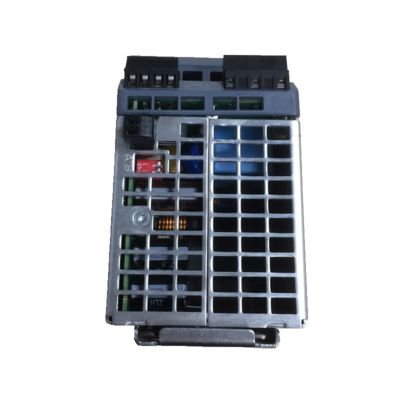

Siemens 6EP1334-3BA10 SITOP PSU200M DIN Rail Power Supply 1-Phase Or 2-Phase AC 24V DC Electronic Amplifier

Product Overview

• Model: 6EP1334-3BA10
• Brand: Siemens
• Series: SITOP PSU200M
• Type: DIN Rail Power Supply
• Input Voltage: 1-phase or 2-phase AC (selectable via switch)
  • 1-phase: 85–264 V AC
  • 2-phase: 176–550 V AC
• Output Voltage: 24 V DC (adjustable from 24 V to 28.8 V)
• Output Current: 10 A
• Output Power: 240 W
• Efficiency: Up to 91%
• Protection Features:
  • Short-circuit protection
  • Overload protection
  • Overvoltage protection (<35 V)
  • Galvanic isolation (SELV output)
• Certifications:
  • CE, UL/cUL, CB, EAC, UKCA
  • ATEX, IECEx for hazardous locations
  • Marine approvals: ABS, BV, DNV GL, LRS
• Operating Temperature: -25°C to +70°C (with derating above 60°C)

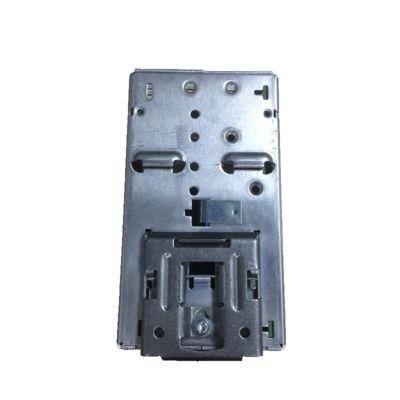

• Mounting: DIN rail (EN 60715, 35x7.5/15)
• Dimensions: 70 mm (W) x 125 mm (H) x 121 mm (D)
• Weight: Approx. 0.8 kg
• Protection Class: IP20
• Applications: Industrial automation, control systems, machinery, and equipment requiring stable 24V DC power supply

Key Features

• Wide Input Voltage Range: Suitable for global use with both single-phase and two-phase AC inputs.
• High Efficiency: Reduces energy consumption and heat generation.
• Reliable Protection: Ensures safe operation in demanding industrial environments.
• Compact Design: Space-saving DIN rail mounting.
• Integrated Status Indicators: Green LED for "24 V OK", relay contact for remote monitoring.

Typical Applications

• Industrial control panels
• Automation systems
• Machine tools
• Process control equipment
• Building automation

Compliance & Safety

• Meets international safety and EMC standards (EN 60950-1, EN 50178, EN 55022 Class B, etc.)
• Suitable for use in Class I, Division 2 hazardous locations (with proper certification)
• RoHS and REACH compliant
