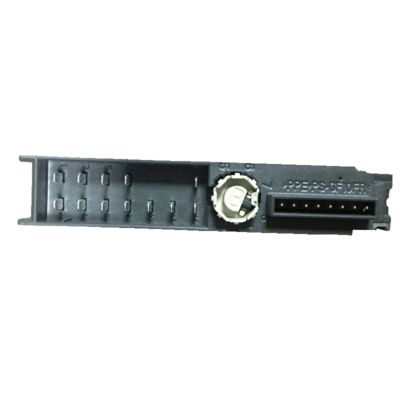

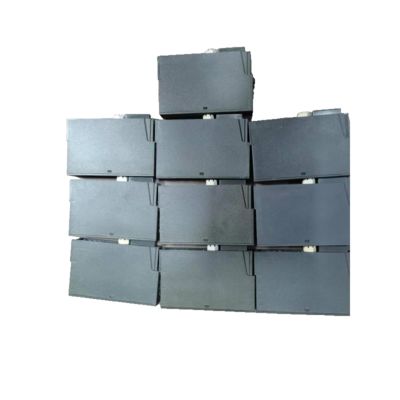

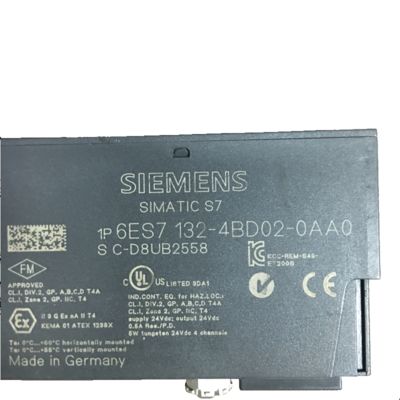

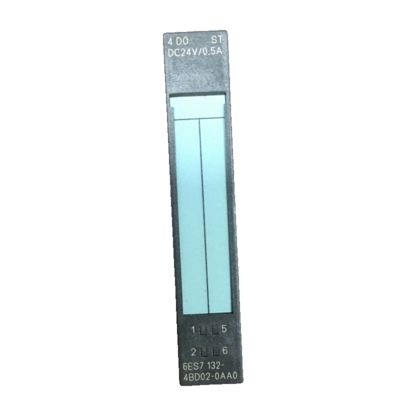

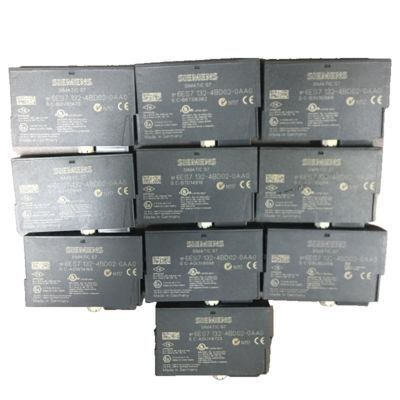

Durable Electronic Amplifier With 4 Digital Outputs 24V DC 0.5A Output Current Siemens SIMATIC ET 200S 6ES7132-4BD02-0AA0

Product Overview

• Model: 6ES7132-4BD02-0AA0
• Brand: Siemens
• Series: SIMATIC ET 200S
• Type: Digital Electronic Module – 4DO DC24V/0.5A ST

Technical Specifications

• Number of Outputs: 4 digital outputs
• Output Voltage: 24 V DC
• Output Current per Channel: 0.5 A
• Total Output Current per Module: 2 A
• Module Width: 15 mm
• Weight: Approx. 40 g
• Cable Length (Unshielded): Up to 600 m
• Cable Length (Shielded): Up to 1000 m
• Isolation:
  • Between channels: No
  • Between channels and backplane bus: Yes
• Protection Features:
  • Short-circuit protection
  • Reverse polarity protection
• Switching Frequency:
  • Resistive load: Max. 800 Hz
  • Inductive load: Max. 2 Hz
  • Lamp load: Max. 10 Hz
• Output Delay (Resistive Load):
  • 0 → 1: Max. 50 μs (typ. 45 μs)
  • 1 → 0: Max. 120 μs (typ. 90 μs)
• Diagnostics: Green LED per channel for status indication
• Synchronous Operation: Supported
• Operating Temperature: 0°C to 55°C (vertical mounting)

Features

• Compact design for space-saving installation
• High-speed switching capability
• Suitable for controlling solenoid valves, DC contactors, and indicator lights
• Integrated diagnostics via LED indicators
• Compatible with PROFIBUS and PROFINET communication via ET 200S system

Applications

• Assembly lines
• Machine control
• Process automation
• Building automation
• Automotive production
• Food and beverage processing
• Energy management systems
