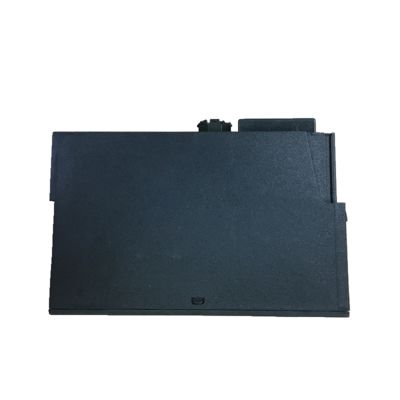

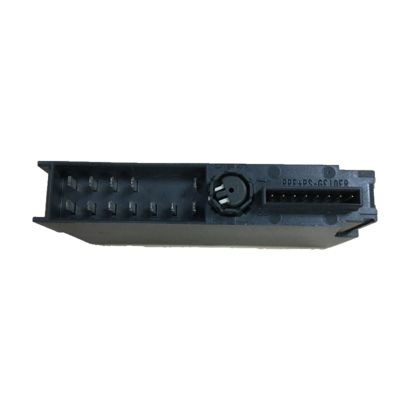

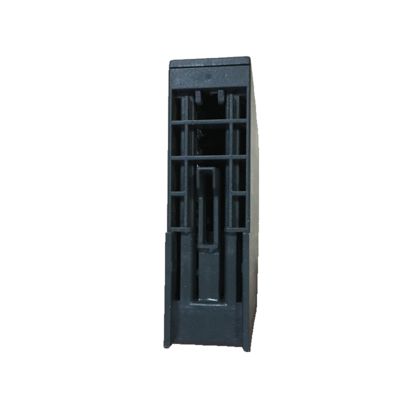

Durable Electronic Amplifier With 4 Digital Outputs 24V DC 0.5A Output Current Siemens SIMATIC ET 200S 6ES7134-4GB01-0AB0

Product Overview

• Model: 6ES7134-4GB01-0AB0
• Brand: Siemens
• Series: SIMATIC ET 200S
• Type: Analog Input Electronic Module
• Description: 2AI I 2WIRE ST (2 Analog Inputs for 2-wire transmitters, Standard type)

Technical Specifications

• Number of Inputs: 2 analog current inputs
• Input Range: 4 to 20 mA
• Resolution: 13 bits
• Cycle Time: 65 ms per channel
• Module Width: 15 mm
• Weight: Approx. 40 g
• Cable Length:
  • Shielded: Max. 200 m
  • Unshielded: Max. 100 m
• Power Supply: 24 V DC (from power module)
• Current Consumption:
  • From load voltage L+: Max. 80 mA
  • From backplane bus: Max. 10 mA
• Power Dissipation: Typical 0.6 W
• Electrical Isolation:
  • Between channels and backplane bus: Yes
  • Between channels: No
  • Between channels and load voltage L+: No
• Diagnostics:
  • Group error indication via red "SF" LED
  • Wire break and overflow/underflow detection
• Operating Temperature:
  • 0°C to 50°C (vertical installation)
• Compliance: ISO 6432, CETOP RP 52 P

Features

• Designed for 2-wire transmitters
• Integrative measuring principle
• Parameterizable smoothing (None, Weak, Medium, Strong)
• High interference suppression (common mode >70 dB)
• Compact design for space-saving installation
• Integrated diagnostics and status LEDs

Applications

• Process control systems
• Manufacturing automation
• Energy management
• Building automation
• Water treatment plants
