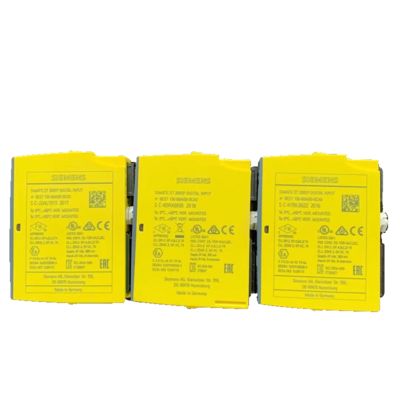

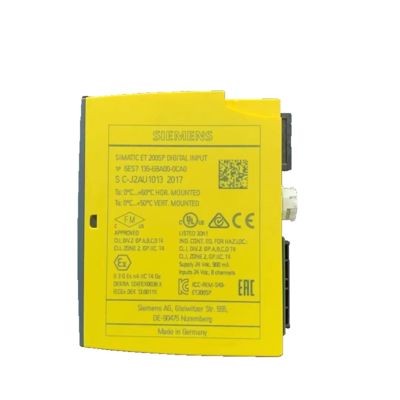

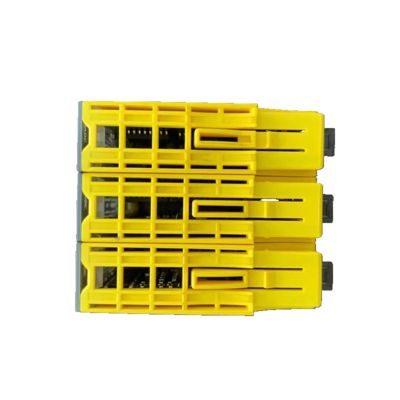

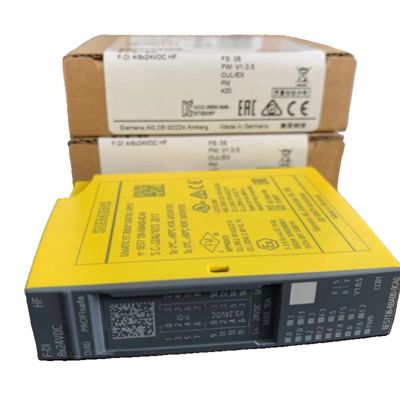

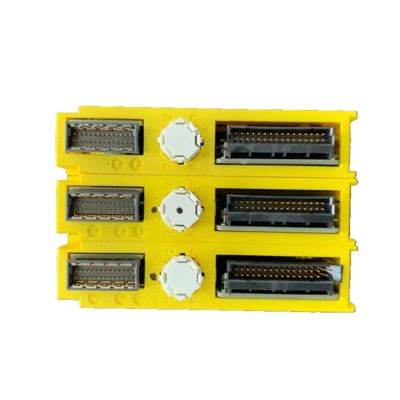

Siemens 6ES7136-6BA00-0CA0 Electronic Amplifier For Fail-Safe Digital Input Module High-Speed Inputs Certified SIL3

Product Overview

• Model: 6ES7136-6BA00-0CA0
• Brand: Siemens
• Series: SIMATIC ET 200SP
• Type: Fail-Safe Digital Input Module
• Description: F-DI 8x 24V DC HF (8-channel fail-safe digital input module, high feature)

Key Features

• Fail-Safe Inputs: 8 digital inputs, certified up to SIL3 (IEC 61508) and PL e (ISO 13849-1)
• Sensor Supply: 8 integrated sensor supply outputs (24 V DC, short-circuit proof)
• Input Delay: Configurable per channel (0.4 ms to 20 ms)
• Input Type: P-reading (high-side switching), suitable for 3/4-wire sensors per IEC 61131-2, Type 1
• Diagnostics:
  • Channel-specific diagnostics (e.g., short circuit, wire break)
  • Module-level diagnostics (e.g., load voltage missing)
  • LED indicators for status and errors (DIAG, channel status, error per channel)
• Supported Functions:
  • PROFIsafe communication
  • Firmware updates
  • I&M identification data
  • Configurable discrepancy time and short-circuit test

    Applications

    This module is ideal for safety-critical applications in industrial automation, such as:

  • Emergency stop systems
  • Safety door monitoring
  • Light curtain integration
  • Robot safety zones
  • Process safety interlocks
