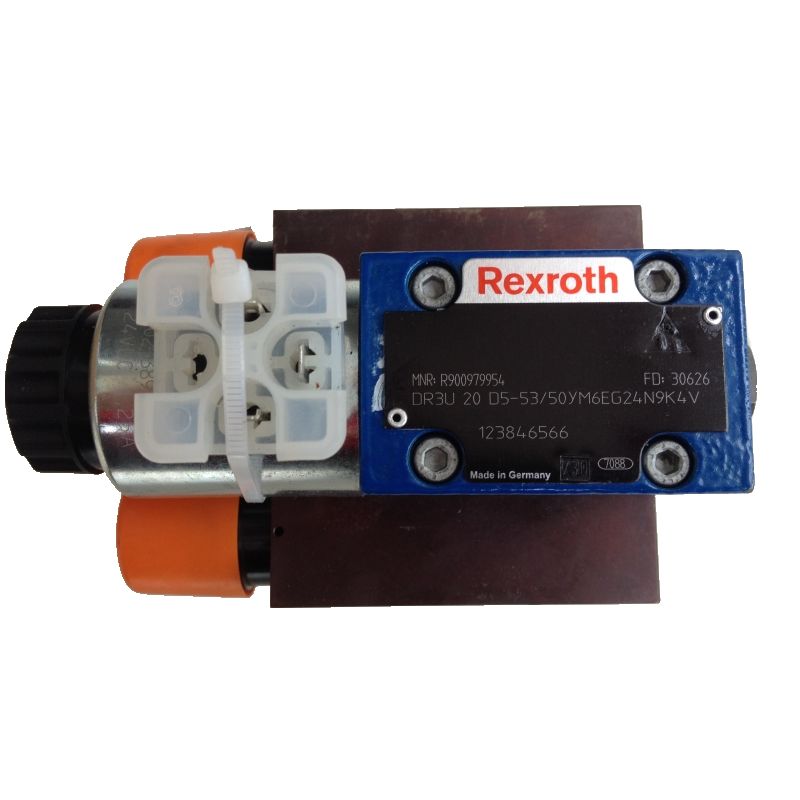

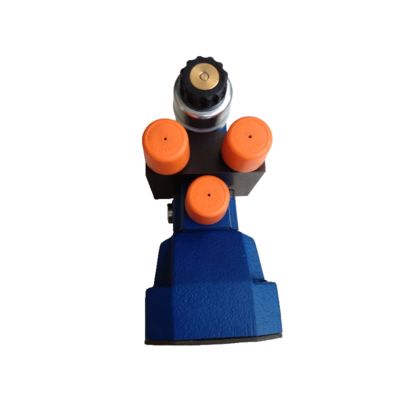

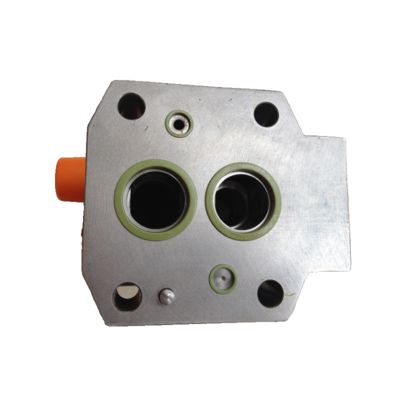

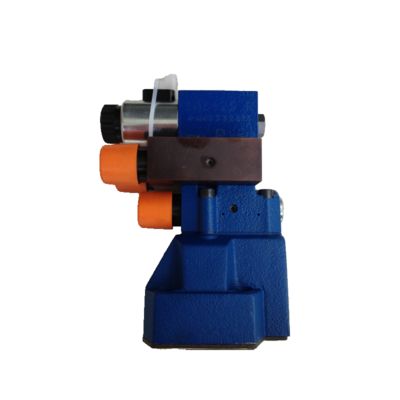

Rexroth Proportional Valve DR3U20D5-5X/50YM6EG24N9K4V Fast Response Speed Energy-Saving

Description:

The DR3U20D5-5X/50YM6EG24N9K4V is a pilot-operated pressure reducing valve primarily used for pressure regulation and stabilization in a specific branch of hydraulic systems. Its operating principle involves the pilot valve detecting changes in outlet pressure, which in turn controls the opening of the main valve spool to achieve precise control of downstream pressure. This valve features fast response, high regulation accuracy, and strong stability, making it particularly suitable for hydraulic circuits sensitive to pressure fluctuations. The pressure reducing valve adopts a modular design, allowing it to be stacked with other Rexroth valve components for space-saving installation and simplified system structure. Its internal structure includes the main valve spool, pilot valve, spring, adjustment screw, seals, etc., with all components precision-machined and rigorously tested to ensure long-term reliability and durability. Additionally, this model supports multiple voltage and seal material configurations, enabling adaptation to various working environments and medium requirements.


Application Areas:

The DR3U20D5-5X/50YM6EG24N9K4V pressure reducing valve is widely used in the following fields:
CNC Machinery: In CNC equipment, this pressure reducing valve is used to control pressure in systems such as hydraulic clamping, tool changing, and spindle balancing, ensuring processing accuracy and equipment stability.
Aerospace: In aerospace hydraulic systems, this valve is used to control pressure in critical components such as control surface drives, landing gear, and braking systems, ensuring flight safety.
Metallurgy and Heavy Industry: In high-temperature, high-pressure environments such as steel mills and aluminum plants, this pressure reducing valve is used to control pressure in equipment such as hydraulic cylinders and hydraulic motors, enhancing system response speed and stability.
Ceramics and Building Materials Machinery: In equipment such as ceramic presses and extruders, this valve is used to control forming pressure, ensuring consistent product quality.
Industrial Automation: In automated production lines, this pressure-reducing valve is used to control the pressure of actuators, improving system response speed and stability.


Advantages:

High-precision pressure control: Using a pilot-operated structure, it can precisely regulate outlet pressure with minimal pressure fluctuations, making it suitable for systems requiring high pressure stability.
Modular design: The stacked structure facilitates combination with other valve components, saving installation space, simplifying system layout, and facilitating maintenance and replacement.
Multiple configurations available: Supports different voltages, seal materials, and connection methods, adapting to various media and operating conditions, offering excellent versatility and flexibility.
High reliability and durability: The valve body is made of cast iron, with internal components precision-machined and heat-treated, offering excellent wear resistance and corrosion resistance, suitable for harsh operating conditions.
Fast response speed: The pilot-operated control structure ensures sensitive valve spool movement, enabling rapid response to system pressure changes and enhancing overall system efficiency.
Energy-saving and cost-effective: By precisely controlling pressure, it reduces system energy consumption, lowers operating costs, and meets modern industrial requirements for energy conservation and environmental protection.

FAQ:

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: What's your payment terms ?

A3: By T/T,LC AT SIGHT,100% full payment.

Q4: How long is your production lead time?

A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.

Q5: When can I get the quotation ?

A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
