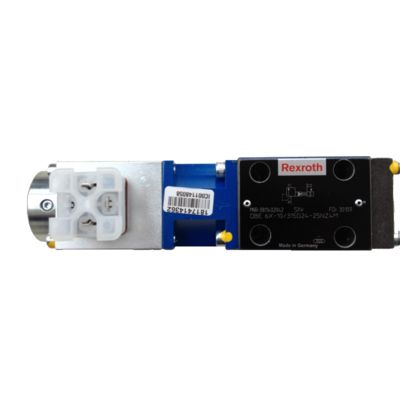

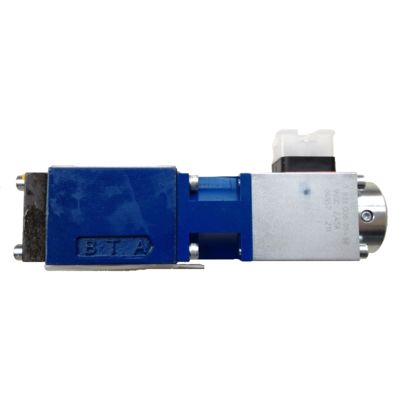

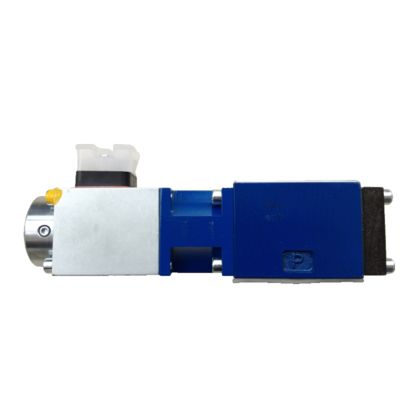

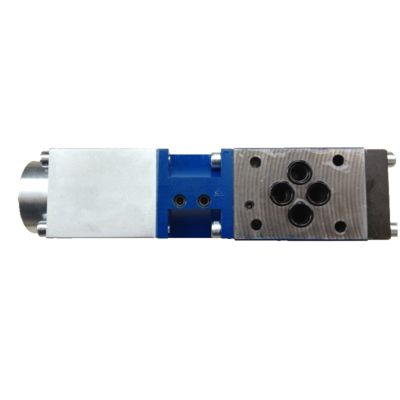

Rexroth Proportional Valve DBE6X-1X/315G24-25NZ4M Energy-saving Easy Installation

Description:

The Rexroth Proportional Valve DBE6X-1X/315G24-25NZ4M is a pilot-operated proportional pressure relief valve belonging to the high-performance industrial hydraulic valve series under Bosch Rexroth. This valve adopts a seat valve structure and is driven by a proportional solenoid, enabling continuous and precise control of system pressure based on input electrical signals. It has a maximum operating pressure of 315 bar and a maximum flow rate of 40 l/min, making it suitable for hydraulic systems requiring high-precision pressure regulation. The valve complies with the ISO 4401-03-02-0-94 installation standard and uses a base plate mounting method, making it easy to integrate into existing systems. The solenoid's maximum current is 2.5A, the supply voltage is 24V DC, the electrical connection uses a DIN 43650-AM2 standard plug, and the sealing material is NBR, suitable for mineral oil (HL, HLP) media.


Application Areas:

The Rexroth DBE6X-1X/315G24-25NZ4M proportional valve is widely used across multiple industrial sectors, primarily including:
Metallurgy and Steel Industry: Used to control pressure systems in rolling mills, continuous casting machines, and other equipment, ensuring stable operation under high loads.
Petrochemical Industry: Employed in high-pressure hydraulic systems for pressure regulation and overload protection, enhancing system safety and response speed.
Construction machinery: Used in the hydraulic systems of equipment such as excavators, cranes, and concrete pump trucks to achieve precise motion control.
Aerospace and defense: Used as a critical pressure control component in hydraulic systems with extremely high requirements for control precision and response speed.
Plastic machinery and die-casting equipment: Used to control mold clamping pressure and injection pressure, improving molding quality and production efficiency.


Advantages:

The Rexroth DBE6X-1X/315G24-25NZ4M proportional valve offers the following significant advantages:
High-precision pressure control: Achieves a linear relationship between current and pressure through a proportional solenoid, enabling precise adjustment of system pressure based on input signals to meet control requirements in complex operating conditions.
Fast response and high stability: The internal design features a pilot-operated structure and cone valve design, combined with PWM current regulation and chopping signals, effectively reducing hysteresis and improving dynamic response and stability.
High safety: Even if the electronic control system fails, the mechanical spring structure inside the valve can still limit system pressure within a safe range, preventing overpressure.
Easy installation and maintenance: Uses a standardized base plate mounting method compliant with ISO standards, facilitating system integration and maintenance; electrical connections use standard plugs, simplifying wiring work.
High adaptability: Suitable for various mineral oil media, with seals made of NBR material, offering excellent oil resistance and sealing performance, suitable for various industrial environments.
Energy-saving and cost-effective: Compared to traditional servo valves, this proportional valve maintains excellent control performance while consuming less energy and offering cost advantages, making it suitable for large-scale industrial applications.
