Description:

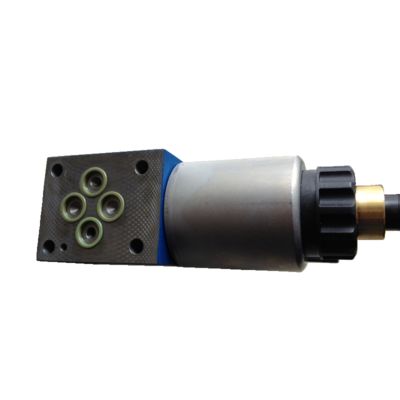

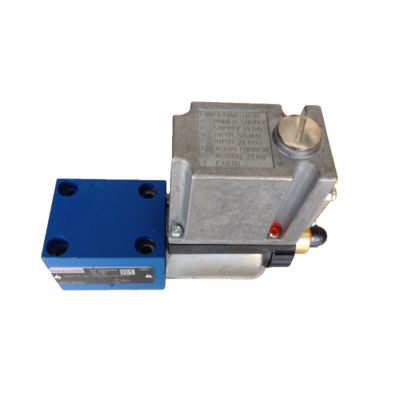

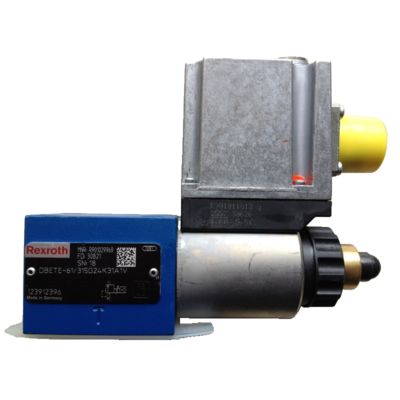

The Rexroth Proportional Valve DBETE-6X/315G24K31A1V is a direct-acting proportional pressure relief valve manufactured by Bosch Rexroth, belonging to the DBETE series. This valve controls the pressure of the hydraulic system via a proportional solenoid valve and features an integrated electronic control unit (OBE), enabling precise pressure regulation without the need for an external amplifier. The “6X” in the model number indicates the specification as NG06, “315” represents the maximum set pressure of 315 bar, “G24” indicates the solenoid voltage as 24V DC, ‘K31’ denotes the electrical connection type, and “A1V” identifies the structural form. The DBETE-6X/315G24K31A1V is made of cast iron, has a compact structure, and is mounted on a base plate, compliant with ISO 4401 standards. It can operate at a maximum pressure of 420 bar and a maximum flow rate of 2 L/min, suitable for various hydraulic oils and temperature conditions (-20°C to +50°C). This valve features low hysteresis (<4%), high response sensitivity (<0.5%), and excellent linear characteristics, enabling precise pressure control.
Application Areas:
DBETE-6X/315G24K31A1V is widely used in industrial hydraulic systems, particularly in applications requiring precise pressure control. Typical applications include:
Injection molding machines: Used to control mold closing pressure to ensure molding quality;
Die-casting machines: Adjusting injection pressure to improve casting density and surface quality;
Hydraulic presses: Regulating pressure during the pressing process to enhance processing precision;
Construction machinery: Pressure control in hydraulic systems of equipment such as excavators and cranes;
Testing equipment: Used in pressure test benches to achieve programmable pressure output;
Automated production lines: Providing stable pressure support in hydraulic clamping, positioning, and other systems.
Advantages:
Integrated electronic control unit (OBE): No external amplifier required, simplifying system structure and reducing installation costs;
High-precision control: Small manufacturing tolerances in the setpoint pressure characteristic curve ensure high pressure control accuracy;
Fast response speed: Typical response time of 80ms, suitable for dynamic pressure regulation;
High stability: Low hysteresis and reversal range ensure smooth system operation;
Flexible installation: Supports installation in any direction, adapting to various equipment layouts;
Easy maintenance: The electromagnetic coil is removable, facilitating replacement and maintenance;
Good compatibility: Complies with ISO 4401 installation standards, facilitating system integration;
High durability: Suitable for high-pressure, high-frequency working environments, with a long service life.
| Brand |
Rexroth |
| Model |
DBETE-6X/315G24K31A1V |
| Color |
Blue Color |
| place of origin |
Germany |
| Material |
Cast Iron |
| Power Source |
Electric |
