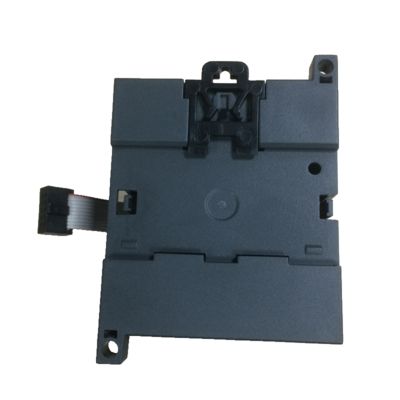

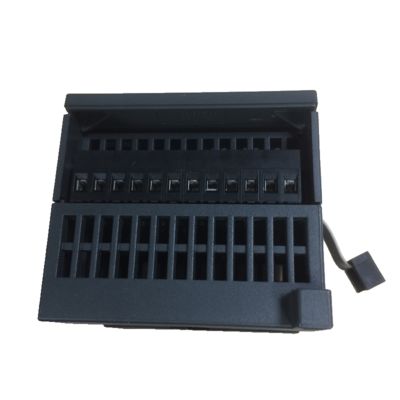

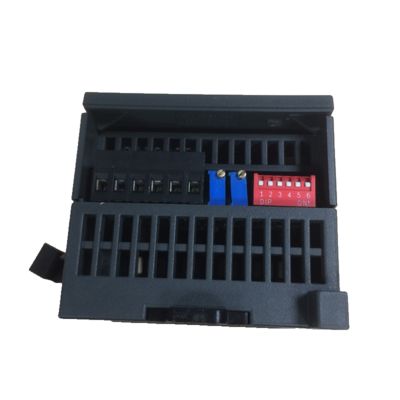

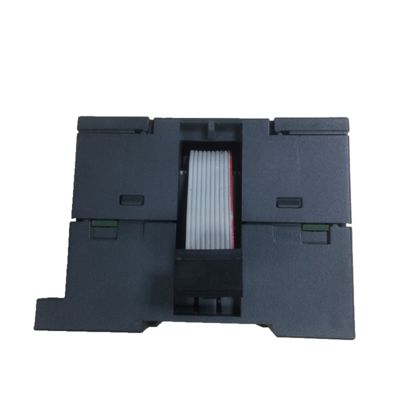

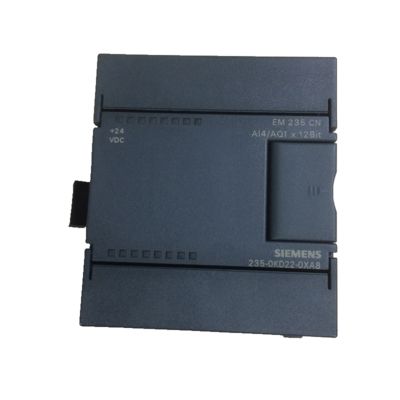

The 6ES7235-0KD22-0XA8 is an electronic amplifier designed for with S7-22X series CPUs providing analog I/O for operation

Key Features:

• Analog Inputs:
  • 4 differential inputs, supporting both voltage and current signals (but not thermocouples or RTDs) .
• Analog Output:
  • 1 channel, ±10 V DC, 11-bit resolution .
• Power Loss:
  • Typical 2 W .
• Dimensions:
  • Width: 71.2 mm, Height: 80 mm, Depth: 62 mm .
• Compatibility:
  • Only compatible with S7-22X CPUs within the S7-200 CN series .
• Approvals:
  • CE certified .

Applications:

• Process Control: Monitoring and controlling parameters like temperature, pressure, and flow.
• Manufacturing: Data acquisition and control in production lines.
• Energy Management: Monitoring electrical parameters in power systems.
