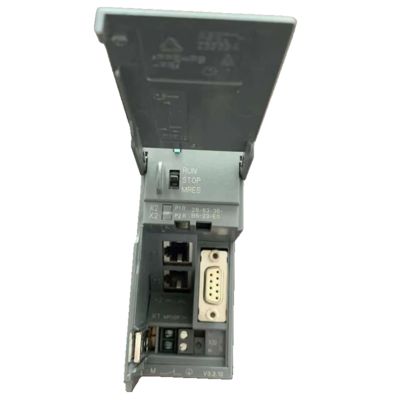

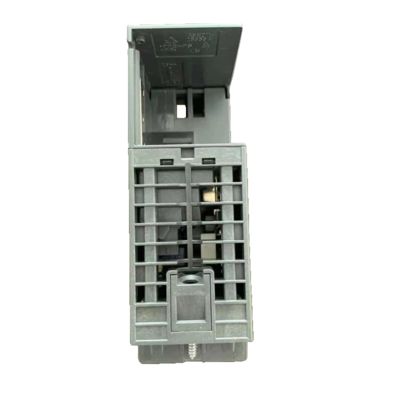

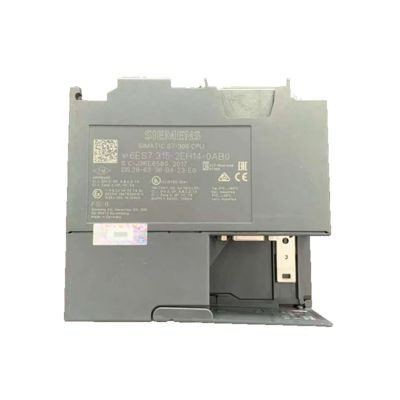

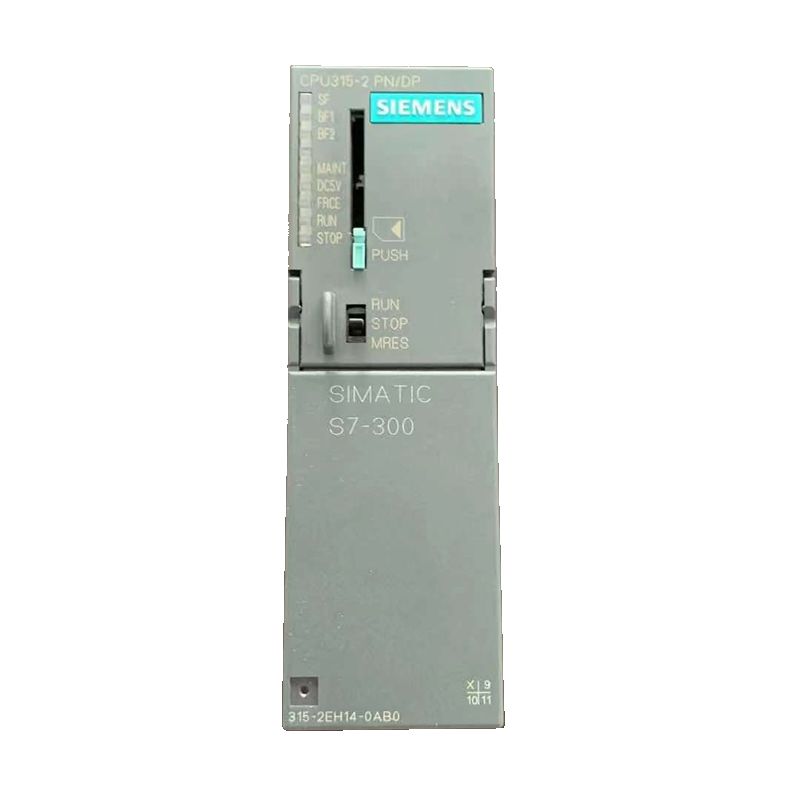

Experience Unmatched Efficiency With 6ES7315-2EH14-0AB0 Electronic Amplifier For Automation Systems

Technical Specifications

• Interfaces:
  • PROFINET: 2 ports with switch (RJ45) that support TCP/IP, ISO on TCP, and UDP protocols.
  • PROFIBUS DP: 1 RS-485 interface supporting up to 12 Mbit/s.
• Memory:
  • Work Memory: 384 KB integrated, not expandable.
  • Load Memory: Supports Micro Memory Card (MMC) up to 8 MB.
• I/O Address Area:
  • Inputs: 2048 bytes.
  • Outputs: 2048 bytes.
• Process Image:
  • Inputs: 2048 bytes.
  • Outputs: 2048 bytes.
• Digital Channels:
  • Inputs: 16384 (1024 centralized).
  • Outputs: 16384 (1024 centralized).
• Analog Channels:
  • Inputs: 1024 (256 centralized).
  • Outputs: 1024 (256 centralized).
• Power Supply:
  • Rated Value: 24 V DC.
  • Permissible Range: 20.4 V to 28.8 V.
• Current Consumption:
  • Rated Value: 750 mA.
  • Inrush Current: 4 A.
• Power Loss: Typical 4.65 W.
• Operating Temperature: 0°C to +60°C.
• Clock Synchronization: Supported via MPI, PROFIBUS DP, and Ethernet (NTP).

Communication Functions

• Supported Protocols:
  • MPI: Yes.
  • PROFIBUS DP: Master and slave.
  • PROFINET IO: Controller and device.
  • Open IE Communication: TCP/IP, ISO-on-TCP, UDP.
• Connection Quantities:
  • PROFINET: Up to 14 configurable connections, with a maximum of 32 instances.
  • Open IE: Up to 8 connections.

Applications

Programming

• Programming Package: STEP 7 V5.5 or higher.
