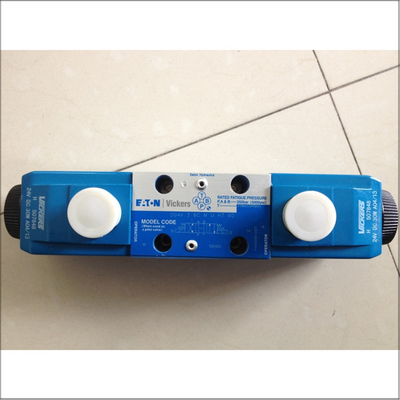

VICKERS DG4V-3-6C-M-U-H5-60-EN12-4 Proportional Valve The Ultimate Choice for Industrial Hydraulic Systems

Technical Specifications

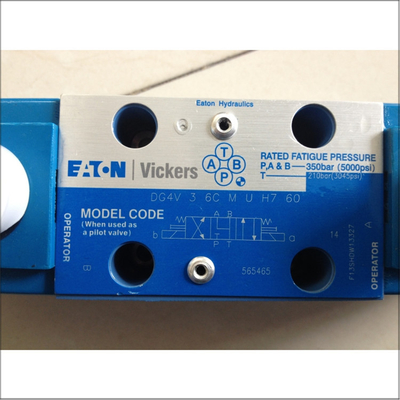

• Model: DG4V-3-6C-M-U-H7-60
• Series: DG4V-3
• Type: Directional control valve
• Actuation Type: Solenoid operated
• Spool Type: 6 (P blocked, A & B to T)
• Spool Spring Arrangement: C (Spring centered, double coils)
• Electrical Options: M (Standard build as per ANSI B93.9)
• Coil Type: U (ISO 4400, DIN43650 connector)
• Coil Voltage: H7 (24V DC, 30 watts)
• Flow Rate: Up to 80 liters per minute (LPM)
• Maximum Working Pressure: 350 bar (5000 psi)
• Tank Port Rating: 210 bar (3000 psi)

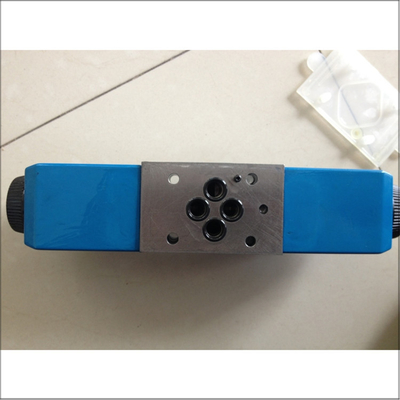

• Interface: ISO4401-03 (CETOP 3)
• Seal Material: Viton
• Working Temperature Range: -20°C to +70°C (-4°F to +158°F)
• Weight: Approximately 2.2 kg (4.85 lbs)

Features

• High Performance: Ensures smooth operation and minimal hydraulic shock.
• Durability: Proven fatigue life and endurance, tested over 20 million cycles .
• Installation Flexibility: Available with various solenoid connectors and locations.
• Compatibility: Suitable for use with petroleum-based hydraulic fluids .
• Quick Coil Replacement: Solenoid coils can be changed quickly and easily without leakage from the hydraulic system .
• Reverse Polarity Protection: Ensures reliable operation even with reversed polarity .
• IP65 Protection Rating: Provides protection against dust and water ingress .

Applications

• Material Handling Equipment
• Automated Manufacturing Processes
• Die Casting Machines
• Injection Molding Machines
• Marine Hydraulic Systems
