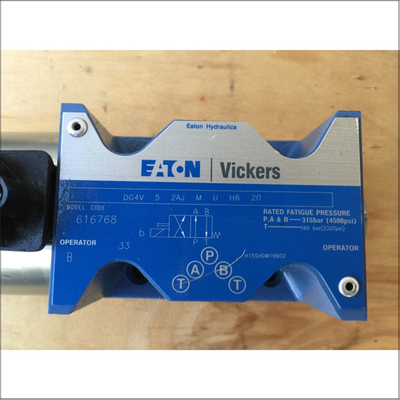

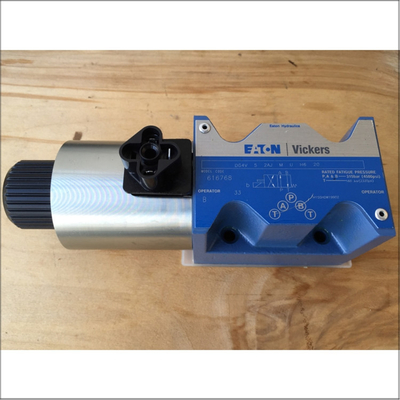

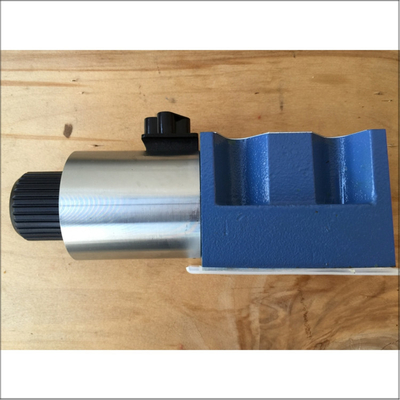

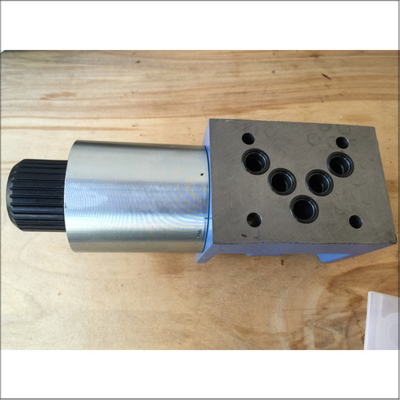

Industrial-Grade VICKERS DG4V-5-2AJ-M-U-H6-20 Proportional Valve for Smooth and Durable Hydraulic Systems

Technical Specifications

• Brand: Vickers by Danfoss
• Model: DG4V-5-2AJ-M-U-H6-20
• Series: DG4V-5
• Type: Directional control valve
• Actuation Type: Solenoid operated
• Spool Type: 2-way, 4-port valve
• Spool Spring Arrangement: M (No springs, detent)
• Electrical Options: U (ISO 4400, DIN43650 connector)
• Coil Voltage: H6 (24V DC)
• Flow Rate: Up to 120 liters per minute (LPM)
• Maximum Working Pressure: 350 bar (5000 psi)
• Tank Port Rating: 2400 PSI
• Interface: ISO4401-05 (CETOP 5)
• Seal Material: Viton (standard)
• Working Temperature Range: -20°C to +70°C (-4°F to +158°F)
• Weight: Approximately 3.27 kg (7.2 lbs)

Features

• High Performance: Ensures smooth operation and minimal hydraulic shock.
• Durability: Proven fatigue life and endurance, tested over 20 million cycles.
• Installation Flexibility: Available with various solenoid connectors and locations.
• Compatibility: Suitable for use with petroleum-based hydraulic fluids.
• Quick Coil Replacement: Solenoid coils can be changed quickly and easily without leakage from the hydraulic system.
• Reverse Polarity Protection: Ensures reliable operation even with reversed polarity.
• IP65 Protection Rating: Provides protection against dust and water ingress.

Applications

• Material Handling Equipment
• Automated Manufacturing Processes
• Die Casting Machines
• Injection Molding Machines
• Marine Hydraulic Systems
