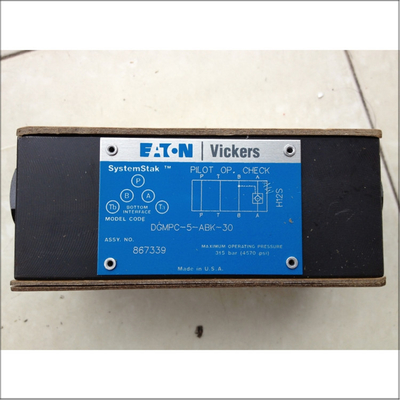

VICKERS DGMPC-5-ABK-30 The Proportional Valve That Delivers Unmatched Performance For Industrial Hydraulic Systems

Technical Specifications

• Model: DGMPC-5-ABK-30
• Series: 30 Series
• Type: Pilot-operated check valve
• Flow Rate: Up to 120 liters per minute (LPM) or 32 US gallons per minute (GPM)
• Cracking Pressure: 1 bar (15 psi)
• Maximum Operating Pressure: 315 bar (4500 psi)
• Working Temperature Range: -20°C to +70°C (-4°F to +158°F)
• Interface: ISO4401-05 (CETOP 5)
• Body Material: Cast Iron
• Seal Type: Viton
• Fluid Compatibility: Petroleum oils
• Fluid Cleanliness: 19/17/14 micron
• Function: Check in line A, pilot from line B
• Mounting Type: Subplate/manifold mounted
• Weight: Approximately 7 lbs (3.2 kg)

Features

• Pilot Operated: Allows free flow in one direction in the line in which the check valve element is located.
• Dual Function: Provides check valve functionality in both lines A and B.
• High Flow Capacity: Handles high flow rates up to 120 LPM.
• Wide Pressure Range: Suitable for pressures up to 315 bar.
• Temperature Resistance: Operates reliably within a wide temperature range.
• Compact Design: Suitable for integration into various hydraulic systems.
• Reliable Performance: Ensures consistent fluid flow control in demanding applications.

Applications

• Machine Tool
• Marine/Offshore Systems
• Presses
• Primary Metal Processing
• Plastics, Pulp & Paper
• Test Equipment
