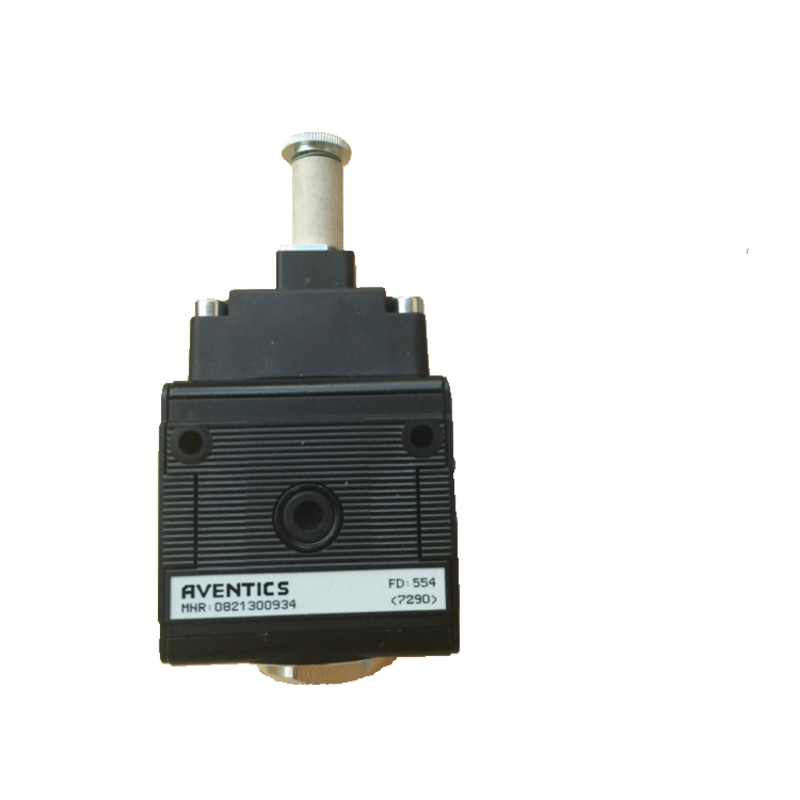

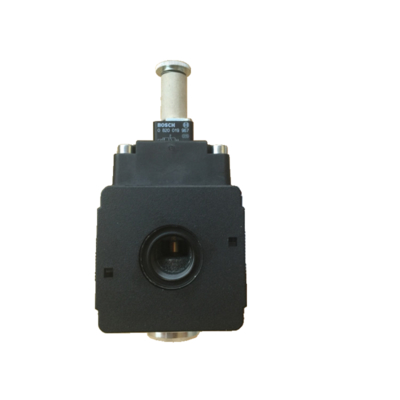

Aventics Direction Valve 0821300934 for Customizable Compressed Air Treatment

Product Description

Avantics Aventics two-position three-way directional valve, electrically operated, series NL4-SOV 0821300934 NL4-SOV-G012-SOE-CON-SS
The AVENTICS NL series air source treatment units are suitable for all fields: as individual components or groups of air source treatment units, for centralized or decentralized compressed air preparation, compact versions or strong versions, for high-temperature or low-temperature environments. This series offers a complete and customizable compressed air preparation technology. It includes the option of combining each component into the product series to achieve the required functions, and the components can be adjusted according to application requirements.
Specifications.Operating Electronics Compressed Air Interface Outlet G 1/2 Minimum Operating Pressure 2.5 bar Maximum Operating Pressure 10 bar.Sealing Principle Soft Sealing.Internal Pilot.Connection Type Tubing Connection.Components Two-way Three-way Directional Valve, Electric Operation.Can be assembled into blocks Can be assembled into blocks.With wire box base valve without coil pilot valve.Structural Features Lift Valve.Low Ambient Temperature -10 °C.High Ambient Temperature 60 °C.Minimum Medium Temperature -10 °C.Maximum Medium Temperature 60 °C.Neutral Gas, Compressed Air.Particle Size max. 5 μm.Compressed Air Interface Inlet G 1/2.Compressed Air Connection Exhaust G 1/2

Rated Flow Qn 1: 24000 l/min.Rated Flow Qn 2: 31600 l/min.Peak Load Rate 100 %.With Interface Protection Grade IP65.Reverse Polarity Protection Reverse Polarity Protection.Electronic Interface Model 2 Multi-Plug Characteristics.Easy to assemble.Offers manual, semi-automatic or fully automatic condensate discharge.Provides a transparent reservoir.Toothed design, easy to maintain.Avantics Aventics two-way three-way stop valve, mechanically operated, series AS2-BAV R412006257 AS2-SOV-G038-MAN-4-ST.Specification.Mechanical operation.Air compression interface: Outlet G 3/8.Minimum operating pressure 0 bar.Maximum operating pressure 16 bar.Operation element: Tubular end.Sealing principle: Soft seal.Certificate of conformity suitable for ATEX.ATEX suitable for ATEX.Structural features: Lever valve.Sealing method: Locking type of sealing
Sealing method: Used for padlock.
