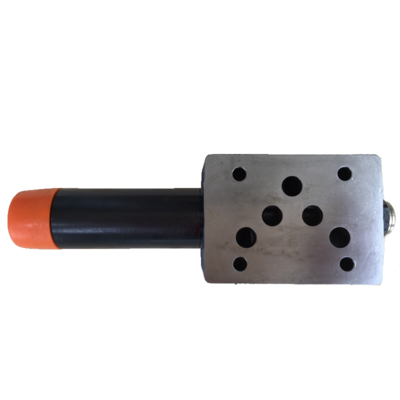

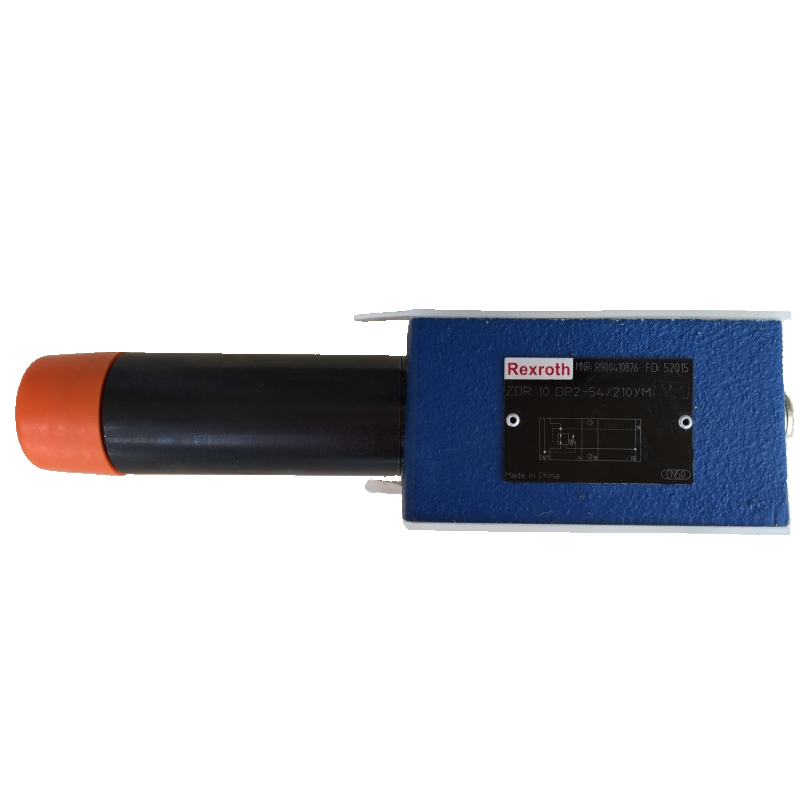

Product Description:
Rexroth pressure reducing valve has high-precision pressure control, fast response and multiple functional characteristics. When using it, you need to pay attention to maintenance to extend its life.
Advantages and characteristics
High-precision pressure control
Proportional solenoid operation is adopted, and the pressure/set value characteristic curve is linearized to ensure stable output pressure and small error.
Fast response
Strong transient response capability, can quickly balance system pressure fluctuations, suitable for high-pressure scenarios (maximum pressure up to 315 bar).
Multiple function integration
Support remote pressure regulation, one-way valve installation, pressure limitation and other functions, some models integrate electronic components to improve reliability.
Structural diversity
Covers a variety of structures such as diaphragm type, spring diaphragm type, piston type, etc., adapted to different media and working conditions.
Precautions for use
Regular maintenance
Check the insulation performance of the electromagnetic coil and the wear of the seals every month
Clean the valve body and filter device every quarter to prevent impurities from blocking the valve core
Pressure monitoring
The system operating pressure data needs to be recorded to detect abnormal fluctuations and adjust the set value in time
Environmental adaptation
The applicable temperature range of some models is 30-90℃, and the working temperature needs to be stable
The specific model needs to be selected according to parameters such as flow rate (maximum 300 l/min) and pressure level (such as 32 MPa), and refer to the product manual for installation and commissioning.
| Viscosity Range |
10 to 800 mm²/s |
| Valve Body Type |
2-Way |
| Pressure Range |
10 bar |
| Model Weight |
0.22 lb. |
| Relative Duty Factor |
Continuous; ED = 100% |
| Connectivity |
Analog, command value 4 … 20 mA |
| Housing Material |
Die cast zinc |
| Fkm Seals |
-20 … +80 |
| End Size |
2-1/2 |
| Mass Kg |
8.0 |
