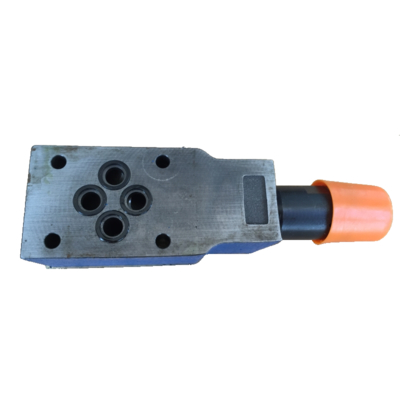

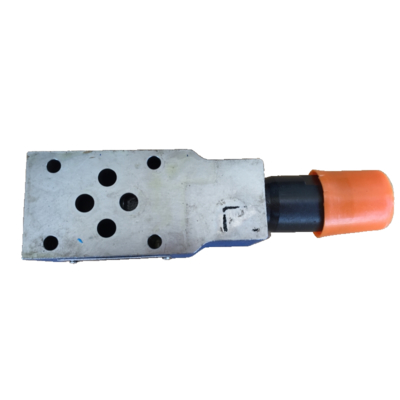

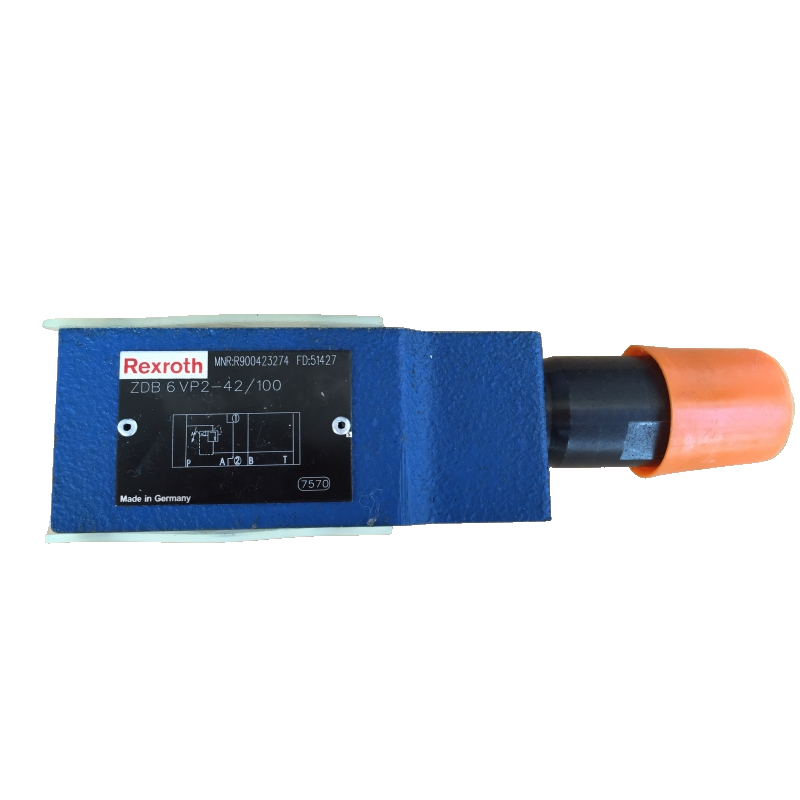

Product Description:
The advantages, features and precautions of Rexroth pressure relief valve (may refer to pressure reducing valve or proportional valve) are as follows:
Advantages
Precise control: Proportional solenoid operation is adopted, the pressure/set value characteristic curve is linearized, the transient response is fast, and stepless adjustment is supported.
Durable and reliable: The core components such as the housing and the control slide valve are specially designed with long service life and strong corrosion resistance.
Strong adaptability: Supports a variety of specifications and flow rates (such as a maximum flow rate of 300 l/min), complies with the ISO 5781 oil port standard, and can be installed with a check valve or pressure limiting function.
Energy-saving: Compared with traditional valves, energy consumption is reduced by more than 30%, and the flow rate has a fast response speed.
Stable pressure: The output pressure fluctuates little, especially suitable for high-load scenarios, and the pressure reduction ratio can reach more than 10:1.
Precautions for use
Installation environment: Ensure that the installation space meets the product size requirements to avoid vibration interference.
Maintenance: Check the status of the seal regularly to prevent impurities from entering the valve body.
Pressure setting: The stiffness of the pressure regulating spring needs to be adjusted according to the actual working conditions to avoid overpressure damage.
Accessory matching: Ensure that the pipeline pressure matches the rated pressure of the valve body to prevent overload.
| Maximum Temperature |
Up to 200°C |
| Relative Duty Factor |
Continuous; ED = 100% |
| Valve Position |
Normally Closed |
| Type Of Actuation |
Solenoid-actuated |
| Dimensions |
5.5 x 3 x 2 inches |
| Type Of Connection |
Subplate mounting |
| Operation Method |
Mechanical |
| Mounting Type |
Horizontal |
| After Warranty Service |
1 Year |
| Viscosity Range |
10 to 800 mm²/s |
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: What's your payment terms ?
A3: By T/T,LC AT SIGHT,100% full payment.
Q4: How long is your production lead time?
A4:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q5: When can I get the quotation ?
A5: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
