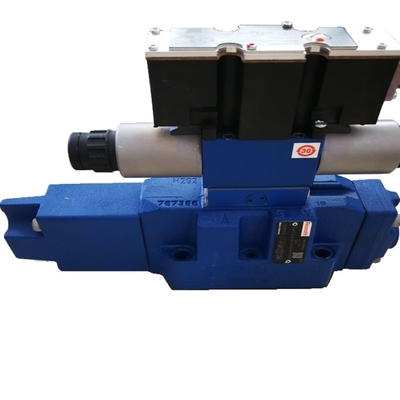

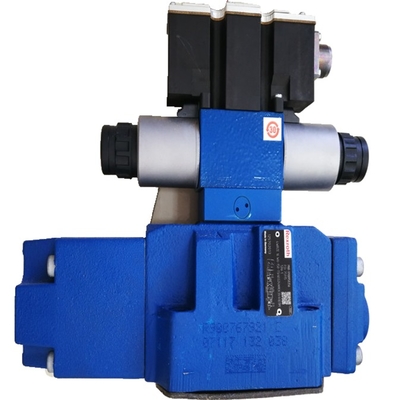

Rexroth Proportional Valve 4WRZE16W6-150-7X/6EG24N9EK31/A1D3M 24V DC High-Precision Control Modularity High-Frequency

Description:

The Rexroth Proportional Valve 4WRZE16W6-150-7X/6EG24N9EK31/A1D3M is a high-performance pilot-operated proportional directional valve widely used in industrial automation, construction machinery, metallurgical equipment, and other fields. The valve controls the movement of the pilot spool via a proportional solenoid, thereby driving the main spool to achieve continuous regulation of hydraulic oil flow direction and flow rate. This valve is a pilot-operated proportional directional valve. The nominal bore is 16 mm. The spool type is “W6,” suitable for specific flow characteristics. The rated flow rate is 150 L/min. The electrical connection is a 24V DC power supply, featuring integrated electronic components (OBE) and a manual operating device. The valve adopts a pilot-controlled structure, where an electrical signal controls the movement of the pilot spool, thereby driving the main spool to achieve continuous regulation of hydraulic oil flow direction and flow rate. This design not only enhances control precision but also improves system response speed.


Application Areas:

Industrial Automation: In modern industrial automation systems, hydraulic actuators require high-precision control. This proportional valve can be used to control the displacement, speed, and force of hydraulic cylinders, enabling programmable control of complex movements. For example, in automated assembly lines, stamping equipment, injection molding machines, and other systems, the 4WRZE16W6-150-7X/6EG24N9EK31/A1D3M ensures smooth operation and rapid response.
Construction Machinery: In construction equipment such as excavators, cranes, and concrete pump trucks, this valve is used to control the movements of hydraulic motors and cylinders, enabling precise operations. For example, in crane boom extension control, the proportional valve can precisely control the extension speed of the cylinder based on input signals from the control lever, enhancing operational safety and efficiency.
Metallurgy and heavy machinery: In heavy equipment such as steel mills, rolling mills, and presses, this proportional valve can be used to control high-pressure hydraulic systems, enabling precise control of heavy-duty equipment. Its high pressure resistance and stability make it suitable for extreme operating conditions.
Testing and Simulation Equipment: In systems with high dynamic response requirements, such as hydraulic test stands, flight simulators, and automotive testing equipment, this valve provides high-frequency, high-precision hydraulic control to meet complex testing needs.


Advantages:

High-Precision Control: This proportional valve employs electro-hydraulic proportional control technology to achieve continuous, stepless regulation of hydraulic system flow and direction. Compared to traditional on/off directional control valves, it avoids hydraulic shock and unstable operation, significantly improving system control precision and stability.
Fast Response Speed: Due to its pilot-controlled structure, this valve has a fast response speed, making it suitable for applications requiring frequent start/stop operations or rapid directional changes. Its dynamic response characteristics meet high-frequency control requirements, enhancing overall system efficiency.
Energy-efficient and high-performance: By precisely controlling oil flow, the valve minimizes unnecessary energy loss. For example, in low-load conditions, the system automatically reduces flow output to minimize energy waste, enabling energy-efficient operation.
High reliability: Rexroth proportional valves are constructed using high-quality materials and advanced manufacturing processes, offering excellent wear resistance and contamination resistance. Their rational structural design ensures easy maintenance, a long service life, and suitability for long-term continuous operation.
Compatibility and Modularity: This valve can be seamlessly integrated with Rexroth amplifiers, sensors, controllers, and other components to build a complete electro-hydraulic proportional control system. Its modular design facilitates system expansion and maintenance.
Emergency Manual Operation Function: This valve also features an emergency manual operation function, allowing manual control of the valve spool position in the event of a power outage or other emergencies, providing additional safety assurance.
