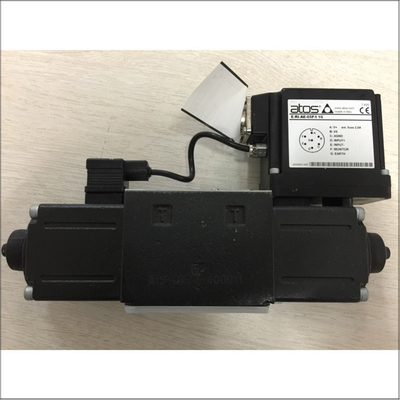

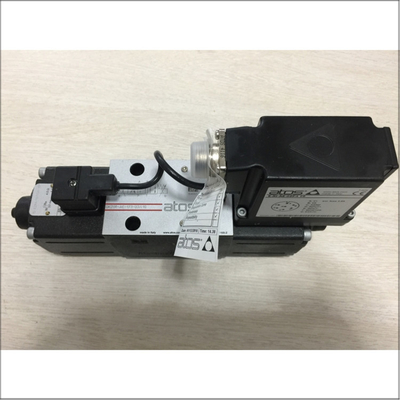

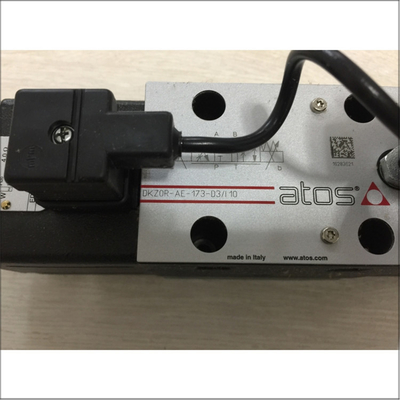

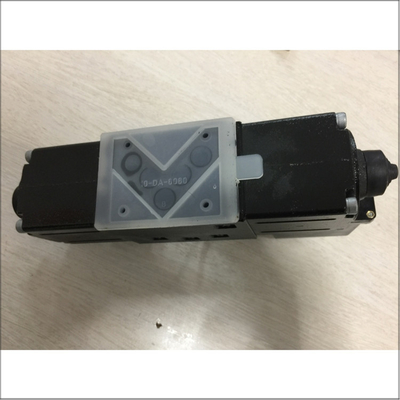

Atos DKZOR-AE-173-D3 10 Proportional Valve For Accurate Fluid Flow Direction And Rate Control In Hydraulic Systems

Detailed Specifications

• Type: Proportional Directional Control Valve
• Model: DKZOR-AE-173-D3 10
• Size: 10
• Maximum Operating Pressure: 315 bar
• Flow Capacity: Up to 160 liters per minute
• Electrical Connection: 24V DC
• Control Type: Proportional control with integrated digital amplifier
• Seal Material: NBR (Nitrile Butadiene Rubber)
• Ambient Temperature Range: -20°C to +70°C
• Fluid Temperature Range: -20°C to +60°C
• Viscosity Range: 20 to 100 mm²/s
• Connection Type: Sub-plate
• Weight: Approximately 2.5 kg

Features

• Direct Operation: Ensures low internal leakage, fast response, and low hysteresis.
• Integrated Electronics: Equipped with an electronic driver for precise control.
• Proportional Control: Provides proportional flow control based on the input electrical signal.
• Robust Design: Suitable for demanding hydraulic applications.
• Low Noise Operation: Designed to operate with minimal noise, reducing operational disturbances.

Applications

• Mobile Machinery: Construction equipment, agricultural machinery, and forestry machines.
• Industrial Manufacturing: Hydraulic presses, molding machines, and other industrial applications.
• Marine and Offshore Equipment: Hydraulic drives for marine applications.

Additional Information

• Manufacturer: ATOS
• Country of Origin: Italy
