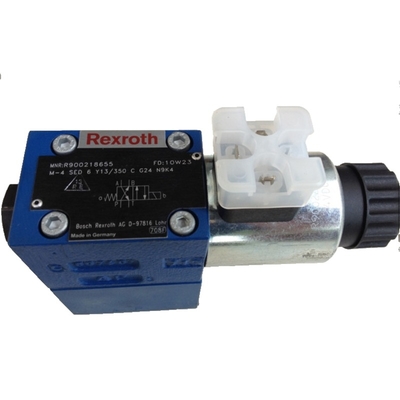

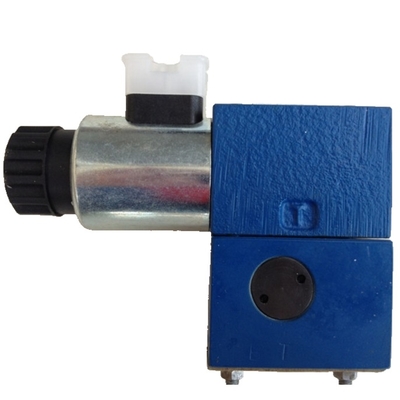

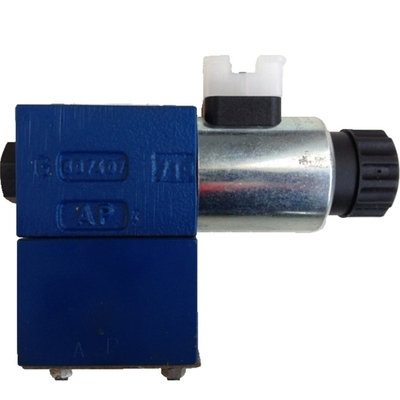

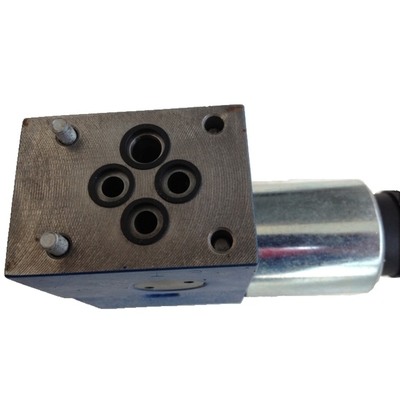

Rexroth Directional Valve M-4SED6Y1X/350CG24N9K4 Long Service Life Low Energy Consumption Quick Response High Efficiency

Description:

The Rexroth Directional Valve M-4SED6Y1X/350CG24N9K4 is a high-performance industrial hydraulic valve manufactured by Bosch Rexroth in Germany, specifically designed for reliable switching of oil flow direction. This valve is a spool valve type, electrically driven, capable of precisely controlling the flow direction of hydraulic oil, suitable for various industrial hydraulic systems. The valve spool is moved by the activation or deactivation of the electromagnetic coil to switch the oil flow direction. Even under high pressure conditions with extended service life, safe switching is ensured. The connection diagram complies with ISO 4401 standards, facilitating integration into existing hydraulic systems. NBR seals are used to ensure excellent sealing performance. Supports 24V DC power supply, equipped with a 3-pin connector (2 + PE), compliant with the EN 175301-803 standard.


Application Areas:

The Rexroth Directional Valve M-4SED6Y1X/350CG24N9K4, due to its high performance and reliability, is widely applied in multiple fields:
Construction machinery: In construction machinery such as excavators, loaders, and cranes, hydraulic systems require frequent switching of hydraulic oil flow direction to perform complex operations such as extending/retracting mechanical arms, tilting buckets, and moving chassis. The directional valve's rapid response capability and high reliability ensure efficient execution of these operations, reducing operational delays and improving work efficiency.
Industrial automation: In industrial automation production lines, hydraulic systems are commonly used to drive robotic arms, hydraulic presses, hydraulic shears, and other equipment. The Rexroth Directional Valve M-4SED6Y1X/350CG24N9K4 can seamlessly integrate with automated control systems, receiving electrical signals from PLCs or other controllers to precisely control the movements of hydraulic cylinders or hydraulic motors. Its high-precision control capability ensures the accuracy of robotic arm operations such as grasping, handling, and assembly, thereby improving production efficiency and product quality.
Shipbuilding and marine engineering: Ship hydraulic systems include steering gear systems, crane systems, and anchor winch systems, which must operate reliably in harsh marine environments. The corrosion resistance and high reliability of the Rexroth Directional Valve M-4SED6Y1X/350CG24N9K4 make it an ideal choice for ship hydraulic systems. In ship steering gear systems, directional valves are used to control rudder blade steering, with their performance directly impacting ship maneuverability and navigation safety. This directional valve can quickly and accurately switch hydraulic oil flow direction, enabling rudder blades to swiftly respond to the helmsman's commands and enhance ship maneuverability.
Aerospace: The aerospace industry imposes extremely stringent requirements on the performance and reliability of hydraulic components. The Rexroth Directional Valve M-4SED6Y1X/350CG24N9K4 has undergone rigorous quality testing and certification, meeting the special requirements of aerospace equipment. In hydraulic systems such as aircraft landing gear retraction systems and flight control surface drive systems, this directional valve can quickly and accurately switch the flow direction of hydraulic oil, ensuring rapid landing gear retraction and precise response of flight control surfaces.


Advantages:

Durable design: It can safely switch even under high pressure and long service life conditions.
Low leakage rate: It uses NBR seals to ensure excellent sealing performance.
Long service life: It has a long design life, low maintenance costs, and can help users save on equipment maintenance and replacement costs.
Electromagnetic drive: It controls the movement of the valve spool by energizing or de-energizing the electromagnetic coil, achieving precise switching of the oil flow direction.
Quick response: Rapidly responds to control signals to ensure the continuity and efficiency of hydraulic system operations.
Multiple connection options: Complies with ISO 4401 standard connection diagrams for easy integration into existing hydraulic systems.
Electrical connection: Supports 24V DC power supply with a 3-pin connector (2 + PE), compliant with EN 175301-803 standards.
Easy maintenance: Simple design for easy maintenance, reducing downtime and maintenance costs.
Low energy consumption: Electromagnetic drive method minimizes energy consumption during control, helping to reduce system operating costs.
High efficiency: Precisely controls hydraulic oil flow direction to minimize unnecessary energy loss.
