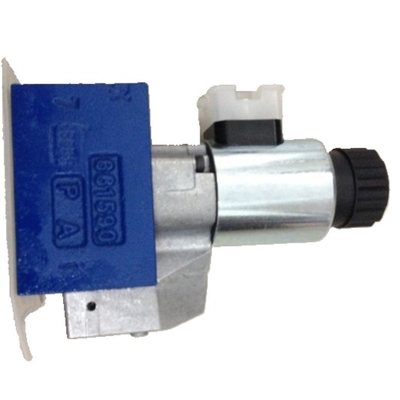

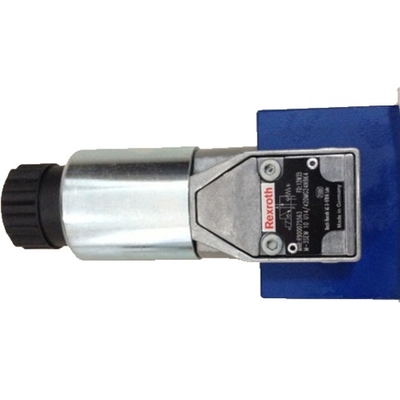

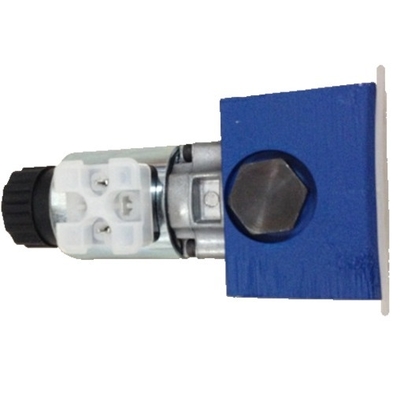

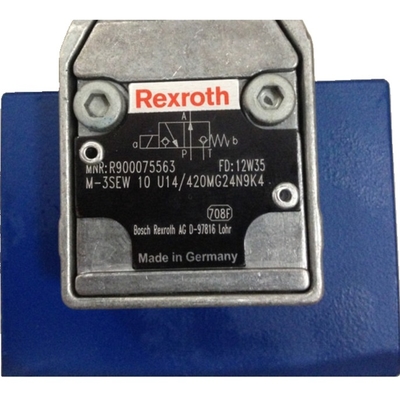

Rexroth Directional Valve M-3SEW10U1X/420MG24N9K4 Multiple Installation Options Leak-Free Isolation Electromagnetic Drive

Description:

The Rexroth Directional Valve M-3SEW10U1X/420MG24N9K4 is a high-performance hydraulic directional valve manufactured by Bosch Rexroth in Germany. This valve is a direct-acting directional spool valve driven by an electromagnetic coil, enabling precise control of hydraulic oil flow direction. This type of valve controls the movement of the spool by energizing or de-energizing the electromagnetic coil, thereby achieving the start, stop, and directional switching of oil flow. The valve adopts a direct-acting design, with the spool driven by an electromagnetic coil and spring-returned. The sealing elements of the spool (such as balls or the spool itself) ensure leak-free isolation. Additionally, the valve features a manual emergency operation function, allowing valve switching without energizing the coil. In the initial position, the valve spool is pressed into the valve seat by a spring. When the electromagnetic coil is energized, the electromagnetic force is applied to the valve spool via the inclined push rod and ball, causing the valve spool to move away from the valve seat and thereby switching the oil flow. This design allows the valve to operate safely at pressures up to 630 bar.


Application Areas:

Industrial Automation
In the field of industrial automation, the M-3SEW10U1X/420MG24N9K4 directional valve can be used to control the movement of hydraulic cylinders and hydraulic motors, achieving precise displacement and speed control. For example, in equipment such as injection molding machines and hydraulic presses, this valve ensures efficient operation of the equipment.
Construction Machinery: In construction machinery such as excavators and cranes, this directional valve enables rapid and accurate directional switching in hydraulic systems. Its high reliability and durability allow it to operate stably in harsh working environments over the long term.
Metallurgy and Heavy Machinery: In metallurgical equipment and heavy machinery, this directional valve can be used to control high-pressure hydraulic systems, enabling precise control of heavy-duty equipment. Its high pressure resistance and stability make it suitable for extreme operating conditions.
Shipbuilding and marine engineering: In the hydraulic systems of ships, such as steering gear, cranes, and anchor winches, this directional valve provides reliable hydraulic control. Its corrosion resistance and high reliability make it an ideal choice for ship hydraulic systems.


Advantages:

Durable design: Made from high-quality materials and advanced manufacturing processes, it offers excellent wear resistance and contamination resistance.
Long service life: The valve spool and seat are precision-machined with high surface hardness and excellent wear resistance, reducing wear caused by frequent switching.
Leak-free isolation: The sealing elements of the valve spool achieve leak-free isolation, ensuring the system's sealing performance.
Electromagnetic drive: The valve core is rapidly switched by energizing or de-energizing the electromagnetic coil, enabling precise control of hydraulic oil flow direction.
Manual emergency operation: In the absence of coil power, the valve can be manually switched to ensure safe operation of the equipment in emergency situations.
Multiple installation options: Various installation methods are available, facilitating integration into existing hydraulic systems.
Easy maintenance: The simple design facilitates maintenance, reducing downtime and maintenance costs.
Low energy consumption: Utilizes electromagnetic drive for low energy consumption, meeting energy-saving requirements.
Quick response: Rapidly responds to control signals, enhancing the overall efficiency of the system.
