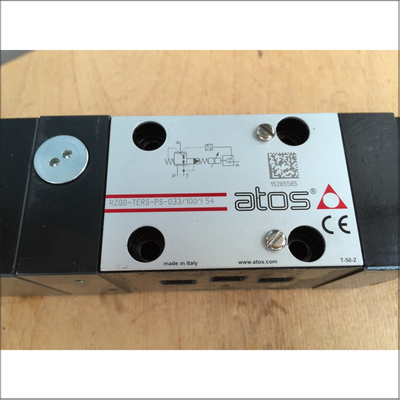

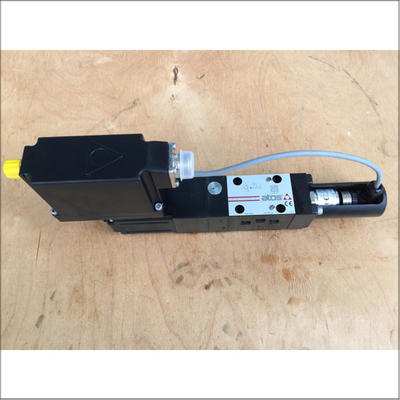

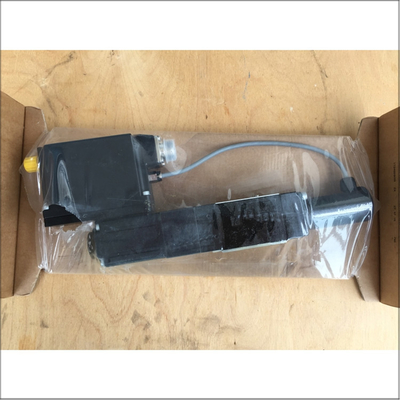

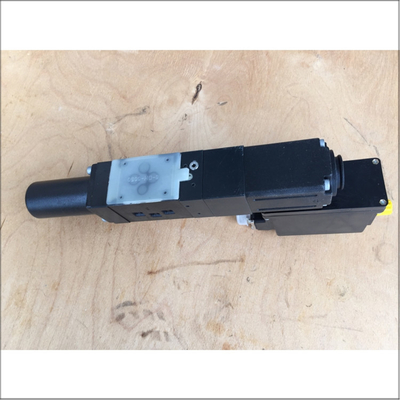

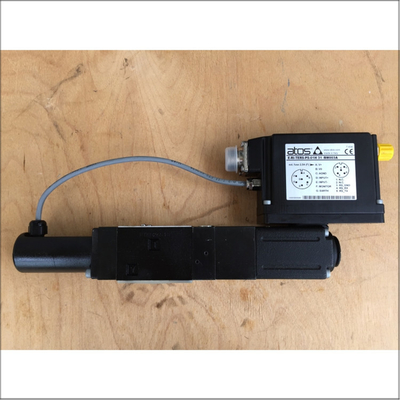

ATOS RZGO-TERS-PS-033 100 54 Proportional Valve High-Performance Pressure Control For Hydraulic Systems

Detailed Specifications

• Type: Proportional Pressure Reducing Valve
• Model: RZGO-TERS-PS-033 100 54
• Maximum Pressure: 100 bar
• Flow Capacity: Up to 100 liters per minute
• Operating Temperature Range: -30°C to +65°C
• Fluid Temperature Range: -20°C to +60°C
• Viscosity Range: 15-100 mm²/s (at 40°C)
• Material: Cast iron
• Weight: Approximately 5.4 kg
• Brand: ATOS
• Country of Origin: Italy
• Installation Position: Any position
• Protection Class: IP67 (CEI EN 60529 standard)
• Electrical Connection: 24V DC
• Maximum Current: 2.4A
• Maximum Power Consumption: 40W

Features

• High Precision Control: Ensures precise control of fluid flow and pressure.
• Integrated Digital Amplifier: Equipped with an integrated digital amplifier for enhanced performance.
• Wide Operating Range: Operates reliably within a wide temperature range.
• Robust Design: Suitable for demanding industrial applications.
• Low Noise Level: Suitable for environments where noise control is important.
• Modular Design: Easy to integrate into existing systems.

Applications

• Mobile Machinery: Construction equipment, agricultural machinery, and forestry machines.
• Industrial Manufacturing: Hydraulic presses, molding machines, and other industrial applications.
• Marine and Offshore Equipment: Hydraulic drives for marine applications.
• Metallurgy and Power Generation: Used in steel, aluminum, and power plants.
