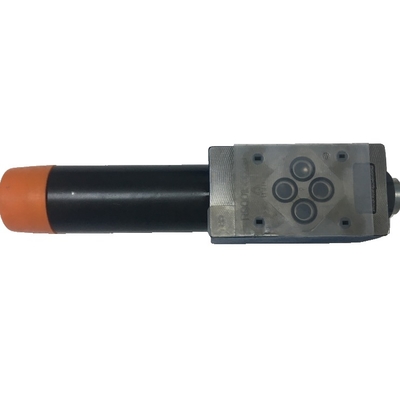

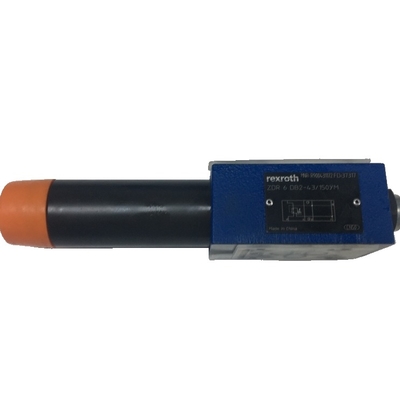

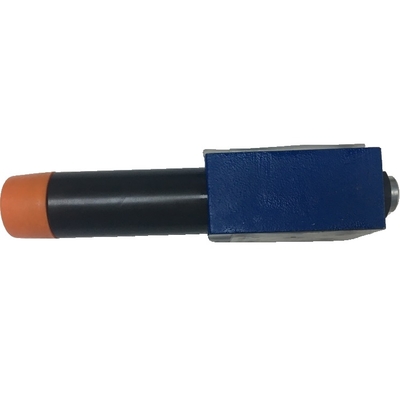

Rexroth Hydraulic Valve ZDR6DB2-4X/150YM Blue Long Life Direct-Acting Design High Pressure Resistance Modular Design

Description:

Rexroth Hydraulic Valve ZDR6DB2-4X/150YM is a high-performance hydraulic pressure reducing valve produced by Bosch Rexroth. This valve is a stacking pressure reducing valve designed for industrial hydraulic systems to reliably reduce system pressure to a preset value. Its main features include direct-acting design, internal pilot oil supply and external oil drain port. The valve has a nominal diameter of 6, is suitable for flow direction P2 to P1, and has a mechanical adjustment method. It can withstand a maximum working pressure of 210 bar and a maximum flow of 50 l/min. This design makes ZDR6DB2-4X/150YM very suitable for hydraulic systems that require precise pressure control.


Application areas:

Rexroth Hydraulic Valve ZDR6DB2-4X/150YM is widely used in many fields, mainly in industrial hydraulic systems that require precise pressure control:
Industrial automation: In automated production lines, this hydraulic valve can be used to control the pressure of hydraulic cylinders and hydraulic motors to ensure smooth operation of the equipment. For example, in systems such as injection molding machines and stamping equipment, ZDR6DB2-4X/150YM can accurately control the pressure of the hydraulic system to improve production efficiency and product quality.
Engineering machinery: In engineering machinery such as excavators and cranes, the valve is used to control the pressure of the hydraulic system to ensure the stability and safety of the equipment under complex working conditions. For example, in the boom control of a crane, ZDR6DB2-4X/150YM can accurately adjust the pressure of the hydraulic cylinder to achieve smooth lifting and lowering actions.
Metallurgy and heavy machinery: In heavy equipment such as steel mills and rolling mills, the valve is used to control high-pressure hydraulic systems to ensure stable operation of the equipment under high loads. Its high pressure resistance and stability enable it to be used for a long time under extreme working conditions.
Testing and simulation equipment: In systems with high dynamic response requirements such as hydraulic test benches and flight simulators, ZDR6DB2-4X/150YM can provide high-precision pressure control to meet complex testing needs.


Advantages:

High-precision pressure control: ZDR6DB2-4X/150YM can reliably reduce system pressure to a preset value, ensuring precise pressure control of the hydraulic system. This high-precision control capability makes it suitable for industrial applications that require strict pressure management.
Direct-acting design: The valve adopts a direct-acting design, which can quickly respond to pressure changes and provide a stable pressure reduction effect. This design reduces the reliance on complex control systems and improves the reliability and response speed of the system.
Internal pilot oil supply: ZDR6DB2-4X/150YM has an internal pilot oil supply function, which can automatically adjust the pilot oil pressure to ensure the smooth operation of the valve core. This design reduces the need for an external oil source and simplifies the structure of the hydraulic system.
External oil drain port: The valve is equipped with an external oil drain port, which can effectively reduce internal leakage and improve the efficiency and reliability of the system. The design of the external oil drain port also helps to reduce the contamination of the hydraulic oil and extend the service life of the hydraulic system.
High pressure resistance: ZDR6DB2-4X/150YM can withstand working pressures up to 210 bar and is suitable for high-pressure hydraulic systems. This high pressure resistance enables it to operate stably under extreme working conditions, meeting the needs of heavy machinery and industrial automation equipment.
Modular design: The valve adopts a modular design, which is easy to integrate into existing hydraulic systems. This design allows the ZDR6DB2-4X/150YM to be customized according to specific needs, improving the flexibility and scalability of the system.
Long life: The ZDR6DB2-4X/150YM adopts high-quality materials and advanced manufacturing technology, with good wear resistance and anti-pollution ability. Its structural design is reasonable, maintenance is convenient, and its service life is long, suitable for long-term continuous operation.
