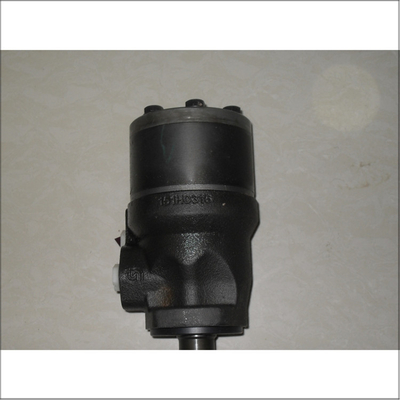

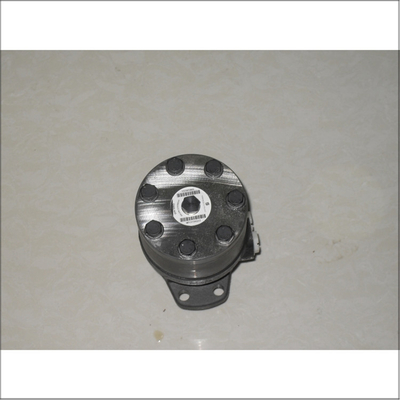

Experience The Power And Reliability Of Danfoss Hydraulic Motors With The High-Performance And Durable OMH400 151H1005

Technical Specifications

• Displacement: 400 cm³
• Shaft Diameter: 32 mm
• Flange Type: SAE-A4 Magneto
• Mounting: 4-bolt rectangular flange
• Continuous Power: Up to 10 kW
• Maximum Continuous Torque: 590 Nm
• Maximum Continuous Rotation Speed: 185 rpm
• Maximum Continuous Pressure Drop: 105 bar
• Shaft Type: Cylindrical with a keyway
• Port Size: G 1/2 BSP
• Drain Port: G 1/4 BSP
• Oil Viscosity: Recommended 20 - 75 cSt
• Material: Cast Iron
• Color: Black
• Mounting Holes Circle: 106.4 mm
• Dimensions:
  • L1: 54.8 mm
  • Luac: 198.1 mm
  • Recess: 82.5 mm

Features

• High Torque: Delivers high torque at relatively low speeds, making it suitable for heavy-duty applications.
• Compact Design: The orbital design allows for a compact form factor, suitable for integration into tight spaces.
• Durability: Built for long-lasting performance, even under challenging conditions.
• Versatility: Offers different shaft options, mounting flanges, and port sizes to suit various applications.
• Efficiency: High mechanical and volumetric efficiency.

Applications

• Construction Equipment: Such as excavators and loaders.
• Agricultural Equipment: Including tractors and harvesters.
• Material Handling: Forklifts and other lifting equipment.
• Forestry Equipment: For applications like log loaders.
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.
• Machine Tools and Stationary Equipment: For industrial applications.
• Marine Equipment: Suitable for marine applications.
