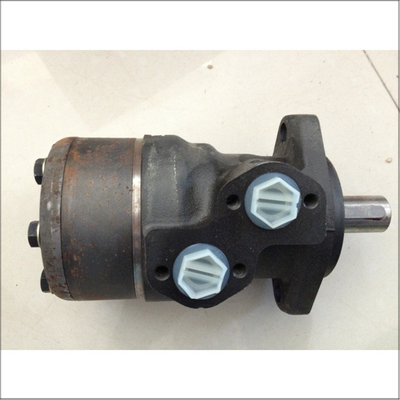

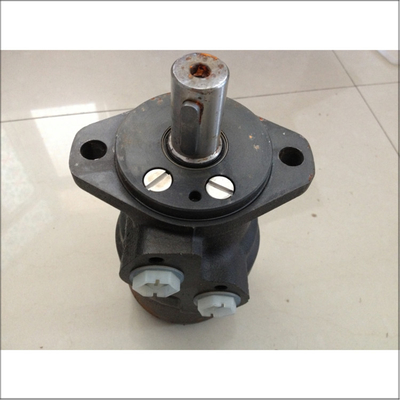

Danfoss OMP200 151-0715 Hydraulic Orbital Motor The High-Performance Choice for Medium-Speed Applications

Technical Specifications

• Displacement: 194.6 cm³/rev
• Maximum Continuous Flow: 60 l/min
• Shaft Type: Cylindrical, 25 mm diameter
• Flange Type: 2-hole oval mounting flange (A2-flange)
• Maximum Continuous Speed: 1600 rpm at 20 bar
• Maximum Continuous Torque: Up to 1111 Nm
• Maximum Continuous Pressure Drop: 125 bar
• Maximum Intermittent Pressure Drop: 150 bar
• Maximum Peak Pressure Drop: 175 bar
• Rotation: Standard
• Dimensions:
  • Length (L): 151.5 mm
  • L1: 26.0 mm
• Weight: 6.4 kg

Features

• Robust Design: Built for durability and reliability in demanding environments.
• Compact Size: Suitable for applications with space constraints.
• High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications.
• Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.
• Advanced Axial Seal Design: High back pressure tolerance, which helps improve the life and reliability of the motor.

Applications

• Agricultural Machinery: For applications requiring high torque and reliability.
• Construction Equipment: Suitable for heavy-duty construction machinery.
• Material Handling: Ideal for forklifts and other lifting equipment.
• Forestry Equipment: Used in forestry machinery for heavy-duty operations.
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.

Port and Mounting Details

• Port Type: Side port version with 2-hole oval mounting flange (A2-flange)
• Drain Connection: G 1/4, 12 mm deep
• Main Port: G 1/2, 15 mm deep
• Mounting Bolt: M8, 13 mm deep (4 pcs.)
