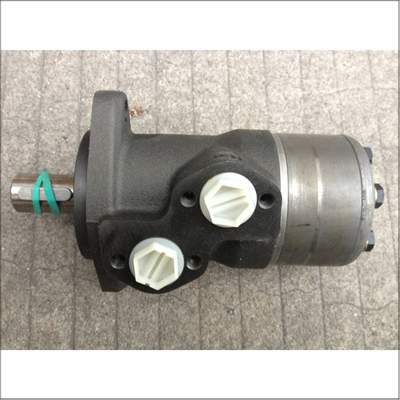

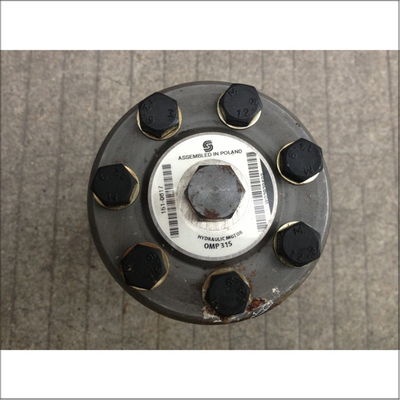

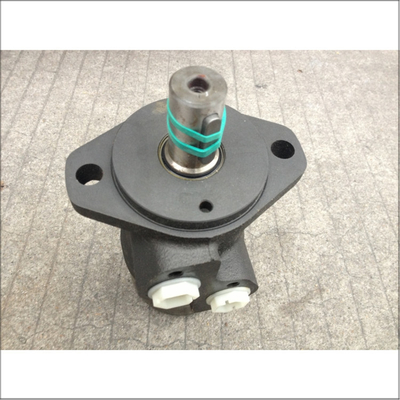

Upgrade Your Machinery With The Danfoss OMP315 151-0617 Hydraulic Motor Designed For Medium To Heavy-Duty Applications

Technical Specifications

• Displacement: 306.1 cm³ (18.73 in³)
• Maximum Continuous Speed: 195 rpm
• Maximum Intermittent Speed: 245 rpm
• Maximum Continuous Torque: 300 Nm (2660 lbf-in)
• Maximum Intermittent Torque: 390 Nm (3450 lbf-in)
• Maximum Continuous Pressure Drop: 75 bar (1090 psi)
• Maximum Intermittent Pressure Drop: 100 bar (1450 psi)
• Maximum Peak Pressure Drop: 160 bar (2320 psi)
• Maximum Continuous Flow: 60 l/min (15.9 gpm)
• Maximum Intermittent Flow: 75 l/min (19.8 gpm)
• Maximum Inlet Pressure:
  • Continuous: 175 bar (2540 psi)
  • Intermittent: 200 bar (2900 psi)
  • Peak: 225 bar (3260 psi)
• Maximum Return Pressure with Drain Line:
  • Continuous: 175 bar (2540 psi)
  • Intermittent: 200 bar (2900 psi)
  • Peak: 225 bar (3260 psi)
• Minimum Starting Torque at Maximum Pressure Drop:
  • Continuous: 280 Nm (2480 lbf-in)
  • Intermittent: 370 Nm (3280 lbf-in)
• Shaft Type: Cylindrical, 25 mm diameter, M8 x 1.25 tap
• Flange Type: A2
• Port Size: Side port - Offset, G 1/2
• Drain Port: None
• Material: Cast iron
• Color: Black (RAL 9005)
• Weight: Approximately 6.73 kg

Features

• Compact Design: Suitable for applications with space constraints.
• High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications.
• Robust Construction: Built with high-grade materials for durability and reliability.
• Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.

Applications

• Agricultural Machinery: For applications requiring high torque and reliability.
• Construction Equipment: Suitable for heavy-duty construction machinery.
• Material Handling: Ideal for forklifts and other lifting equipment.
• Forestry Equipment: Used in forestry machinery for heavy-duty operations.
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.
