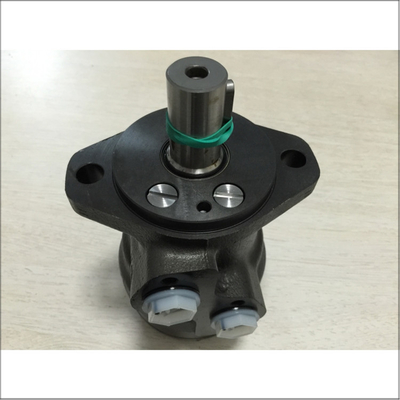

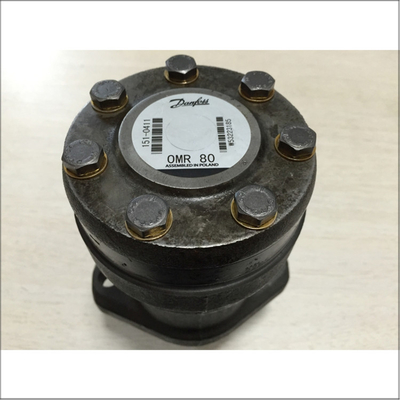

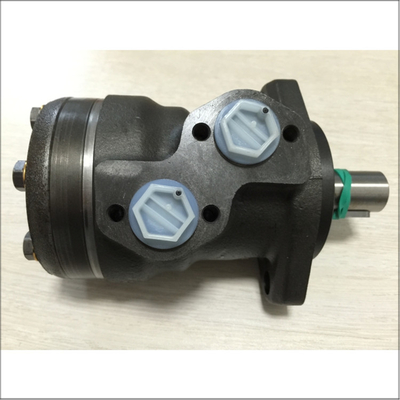

Danfoss OMR80 151-0411 The Hydraulic Motor That Outperforms in Medium to Heavy-Duty Applications

Technical Specifications

• Model: OMR80 151-0411
• Displacement: 80 cm³/rev
• Maximum Continuous Speed: 750 rpm
• Maximum Continuous Torque: 195 Nm
• Maximum Continuous Power: 12.5 kW
• Shaft Type: Cylindrical with spline (1 in spline)
• Flange Type: A2
• Port Style: Side port
• Port Size: G 1/2
• Drain Port: Standard
• Material: Cast iron
• Color: Black (RAL 9005)
• Weight: Approximately 6.5 kg

Features

• High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications.
• Robust Construction: Built with high-grade materials for durability and reliability.
• Compact Size: Suitable for applications with space constraints.
• Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.
• Advanced Sealing System: High back pressure tolerance, which helps improve the life and reliability of the motor.

Applications

• Agricultural Machinery: For applications requiring high torque and reliability.
• Construction Equipment: Suitable for heavy-duty construction machinery.
• Material Handling: Ideal for forklifts and other lifting equipment.
• Forestry Equipment: Used in forestry machinery for heavy-duty operations.
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.

Additional Information

• Upgrade Information: The OMR80 151-0411 has been upgraded to the OMRX80 11186671.
• Price Range: The price for this model ranges from ¥1250 to ¥2800 depending on the quantity ordered.
