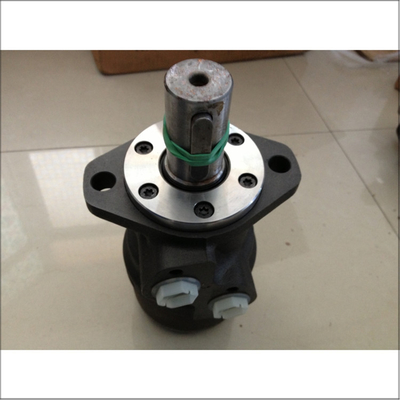

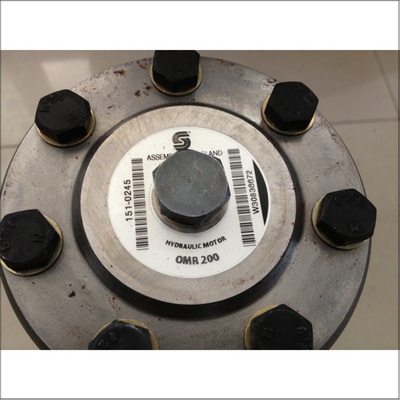

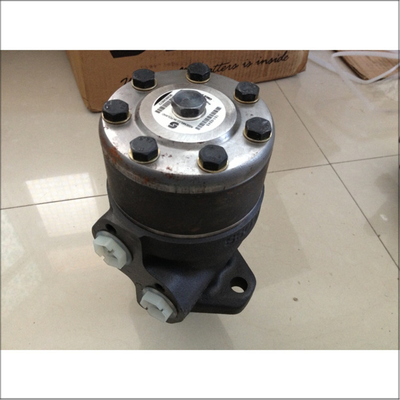

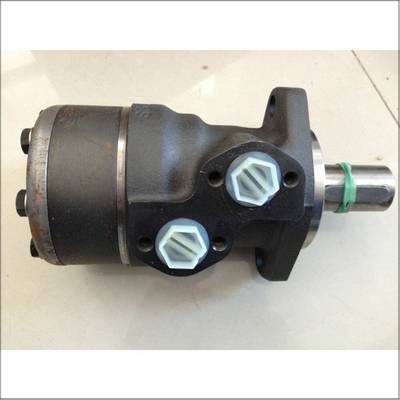

Danfoss OMR200 151-0245 The Superior And Dependable Hydraulic Motor For Medium To Heavy-Duty Operations

Technical Specifications

• Displacement: 199.8 cm³ (12.23 in³)
• Maximum Continuous Speed: 300 rpm
• Maximum Intermittent Speed: 375 rpm
• Maximum Continuous Torque: 300 Nm (2660 lbf-in)
• Maximum Intermittent Torque: 390 Nm (3450 lbf-in)
• Maximum Continuous Pressure Drop: 75 bar (1090 psi)
• Maximum Intermittent Pressure Drop: 100 bar (1450 psi)
• Maximum Peak Pressure Drop: 160 bar (2320 psi)
• Maximum Continuous Flow: 60 l/min (15.9 gpm)
• Maximum Intermittent Flow: 75 l/min (19.8 gpm)
• Shaft Type: Cylindrical, 32 mm diameter
• Flange Type: A2
• Port Style: Side port
• Port Size: G 1/2
• Drain Port: Standard
• Material: Cast iron
• Color: Black (RAL 9005)
• Weight: 8.0 kg (17.6 lbs)

Features

• Robust Design: Built for durability and reliability in demanding environments.
• Compact Size: Suitable for applications with space constraints.
• High Torque Capability: Provides high torque at relatively low speeds, making it ideal for heavy-duty applications.
• Advanced Sealing System: High back pressure tolerance, which helps improve the life and reliability of the motor.
• Versatile Applications: Suitable for a wide range of industrial and mobile hydraulic systems.

Applications

• Agricultural Machinery: For applications requiring high torque and reliability.
• Construction Equipment: Suitable for heavy-duty construction machinery.
• Material Handling: Ideal for forklifts and other lifting equipment.
• Forestry Equipment: Used in forestry machinery for heavy-duty operations.
• Lawn and Turf Equipment: Suitable for landscaping and maintenance machinery.

Dimensions

• Length: 300 mm
• Width: 160 mm
• Height: 160 mm
• Weight: 8.63 kg
